(09-042) - OPERATION STATION GROUP

Запчасти Case IH SPX4260 (09-042) - OPERATION STATION GROUP Liquid Plumbing

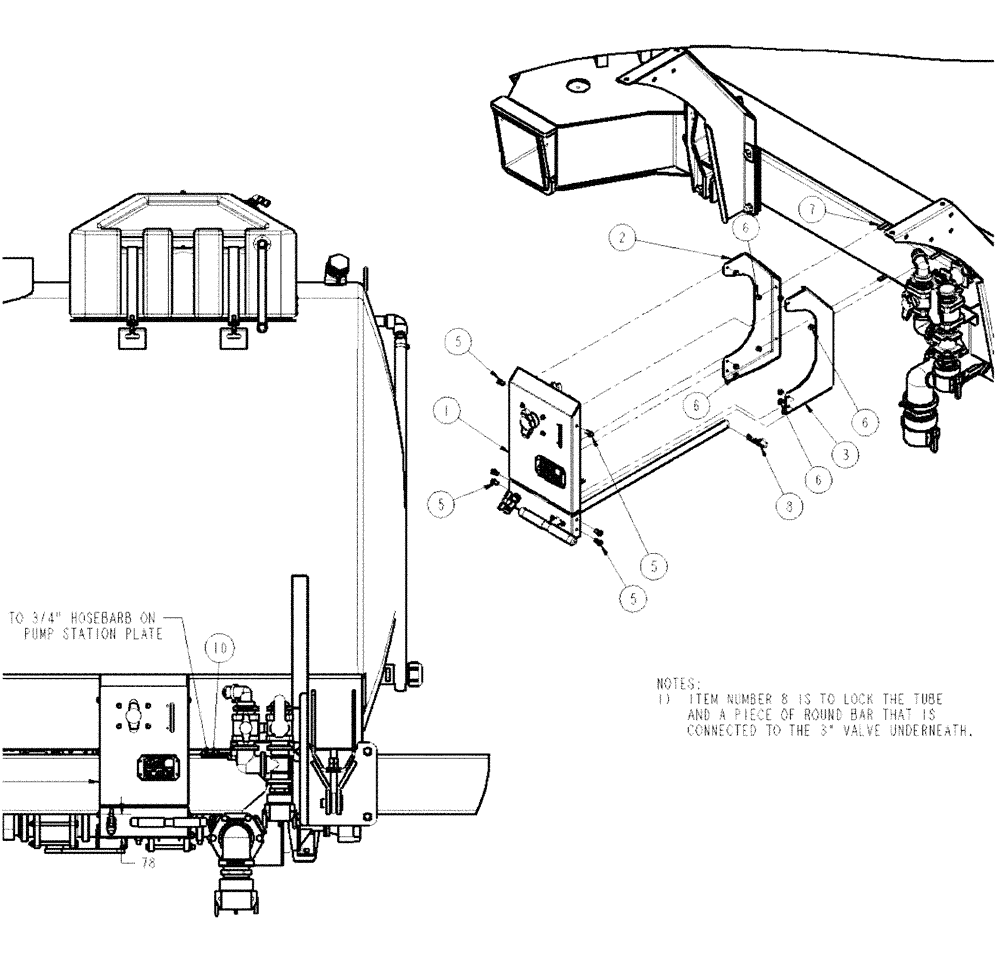

Схема запчастей Case IH SPX4260 - (09-042) - OPERATION STATION GROUP Liquid Plumbing
8
10
6
5
6
6
2
3
1
5
6
5
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

BN310446

HOSE CLAMP

#12, Stainless Steel

1шт.

0

BN310447

HOSE CLAMP

#20, Stainless Steel

1шт.

0

BN310448

HOSE CLAMP

#28, Stainless Steel

3шт.

1

BN325100

PUMP

Station Group

1шт.

See Fig. 09-040

1шт.

2

BN326040

BRACKET

Pump Station LH

1шт.

3

BN326041

BRACKET

Pump Station RH

1шт.

5

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

7

BN324566

U-BOLT

BOLT "U" 3/8 X 204mm X 178mm

2шт.

8

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

10

BN53857

HOSE,0.75" ID x 26.00"

Flexible

1шт.
