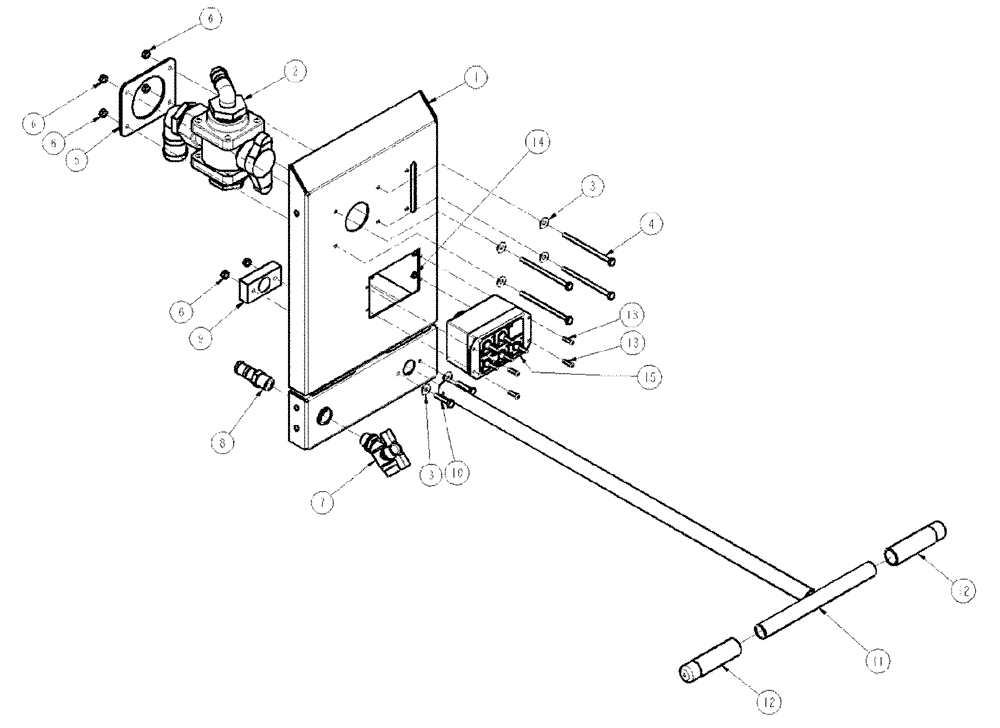

Запчасти Case IH SPX4260 (09-040) - PUMP STATION ASSEMBLY Liquid Plumbing

1

BN325095

PLATE

Pump Station

1шт.

2

BN324500

VALVE

Station Assembly

1шт.

See Fig. 09-041

1шт.

3

BN50138

WASHER,1/4", SS

6шт.

4

BN311764

BOLT,Hex, 1/4" - 20 x 4-1/4", SST

1/4"-20 X 4-1/4", Stainless Steel

4шт.

5

BN323367

PLATE

1/2" Valve Holder

1шт.

6

BN55359

LOCK NUT,1/4"-20, SS

6шт.

7

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

8

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

9

BN323177

BUSHING

Valve Handle Extension

1шт.

10

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

11

BN323878

HANDLE

3" Valve

1шт.

12

BN323880

GRIP

Handle, 1" ID Vinyl

2шт.

13

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

15

BN323673

REMOTE CONTROL

Group, ELECT. Stat

1шт.
