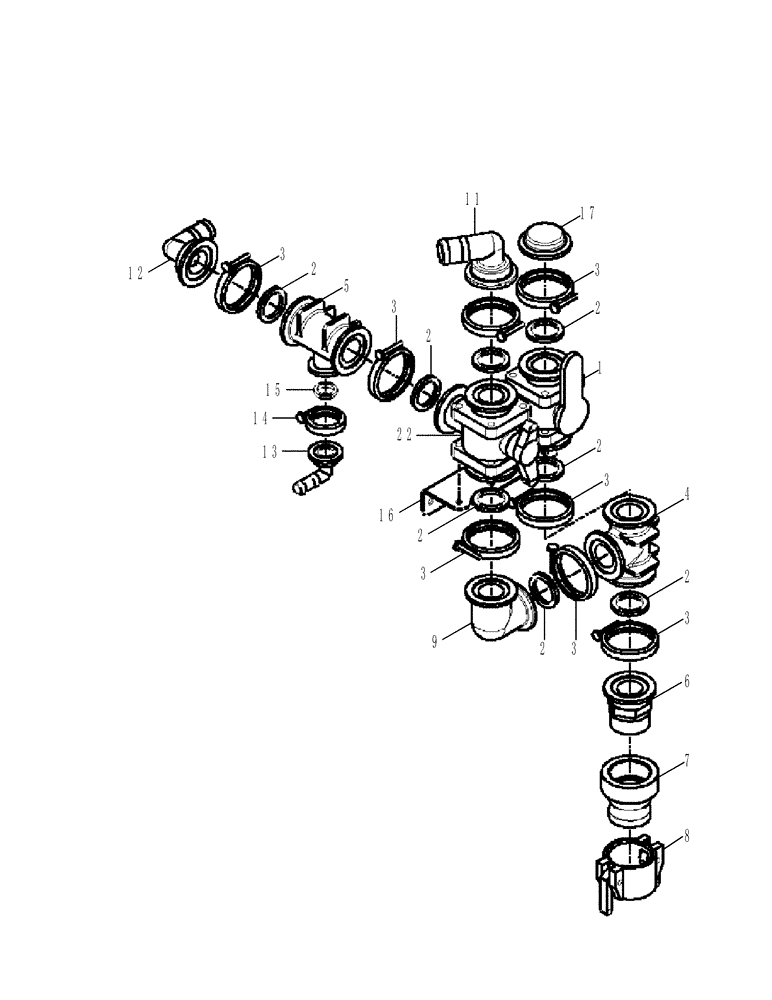

Запчасти Case IH SPX4260 (09-039) - FILL, 2" PLUMBING ASSEMBLY Liquid Plumbing

1

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

8шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

8шт.

4

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

5

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 Flange x 1 Flange

1шт.

6

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

7

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

8

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

9

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

10

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

11

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

12

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

13

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

1шт.

14

BN303203

CLAMP,1" Flange

1FL

1шт.

15

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

16

BN325867

PLATE

Mount Load Station

1шт.

17

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

19

BN320997

BRACKET

Decal Mount (SS)

2шт.

20

BN324695

DECAL

Rinse

1шт.

21

BN324696

DECAL

Foam Tank Fill

1шт.

22

BN324998

VALVE

2 FLG X 2 FLG BL

1шт.
