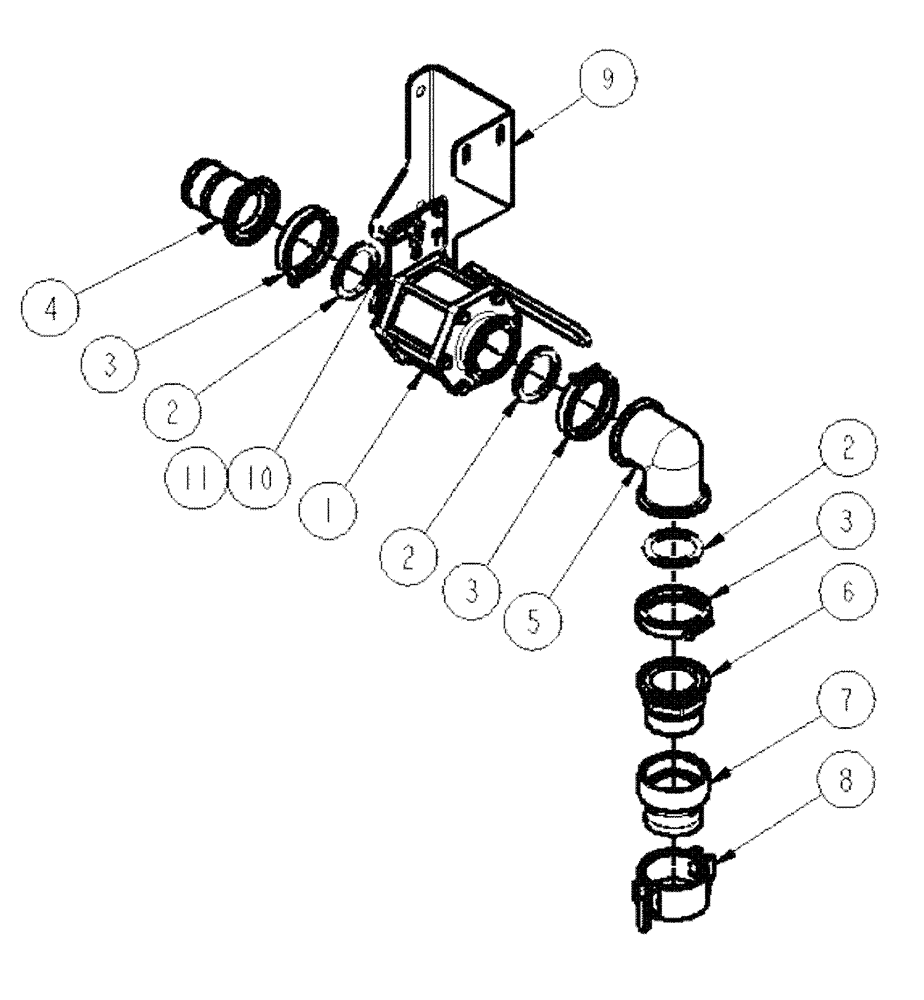

Запчасти Case IH SPX4260 (09-038) - FILL, 3" PLUMBING ASSEMBLY Liquid Plumbing

1

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

3шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

3шт.

4

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

5

BN321077

ELBOW,90 Degree Elbow, 3" Flange x 3" Flange, Poly

Manifold-3" X 90

1шт.

6

BN321078

ADAPTER

Manifold, 3" x 3" Male

1шт.

7

BN318086

COUPLING

3" Cam (M To F)

1шт.

8

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

9

BN324262

BRACKET

Load Station

1шт.

10

BN324698

DECAL

3" Valve

1шт.

11

BN324697

DECAL

Product Tank Fill

1шт.
