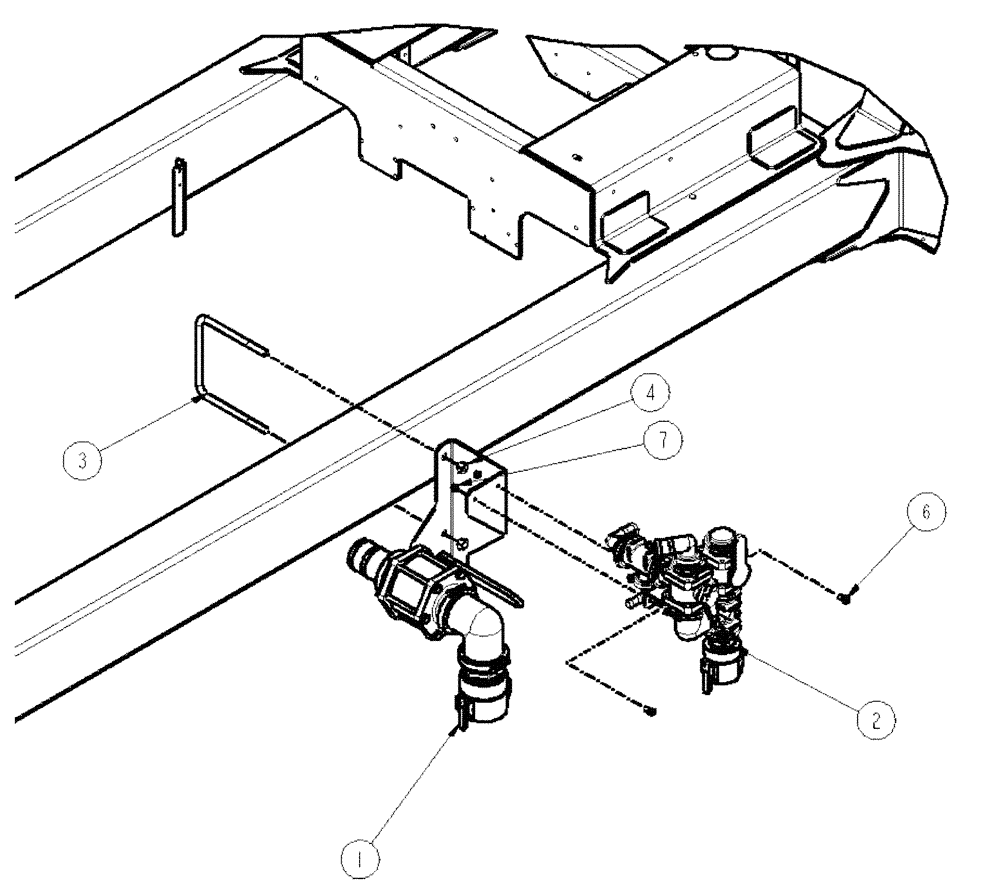

Запчасти Case IH SPX4260 (09-037) - PRESSURE FILL GROUP PLUMBING Liquid Plumbing

1

BN324295

VALVE

Fill, 3" Plumbing Assembly

1шт.

See Fig. 09-038

1шт.

2

BN324296

VALVE

Fill, 2" Plumbing Assembly

1шт.

See Fig. 09-039

1шт.

3

BN312186

U-BOLT

BOLT "U" 16MM X 8.125 X 8.06

1шт.

4

832-46416

NUT,M16 x 2, Cl 8

2шт.

5

BN50146

WASHER,3/8", Stainless

4шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
