(09-035) - NOZZLE SPACING GROUP, 80 OUTER 10" ON

Запчасти Case IH SPX4260 (09-035) - NOZZLE SPACING GROUP, 80 OUTER 10" ON Liquid Plumbing

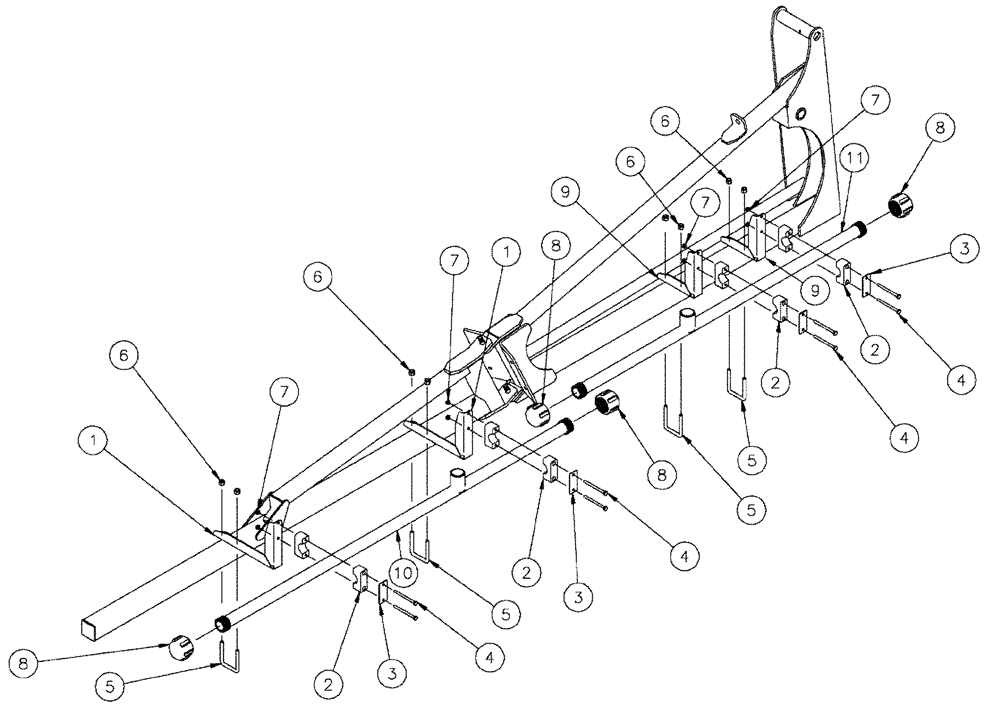

Схема запчастей Case IH SPX4260 - (09-035) - NOZZLE SPACING GROUP, 80 OUTER 10" ON Liquid Plumbing
4
11
7
3
6
5
6
8
2
8
5
2
8
9
8
5
1
5
2
3
1
4
4
6
4
3
6
2
7
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN21618

CAP

1.25"

4шт.

9

BN323957

BRACKET

Spray Bar

2шт.

10

BN320079

TUBE

10" SPX 6

1шт.

11

BN320096

TUBE

10" SPX 5

1шт.
