(09-034) - NOZZLE SPACING GROUP, 90 OUTER, OFF

Запчасти Case IH SPX4260 (09-034) - NOZZLE SPACING GROUP, 90 OUTER, OFF Liquid Plumbing

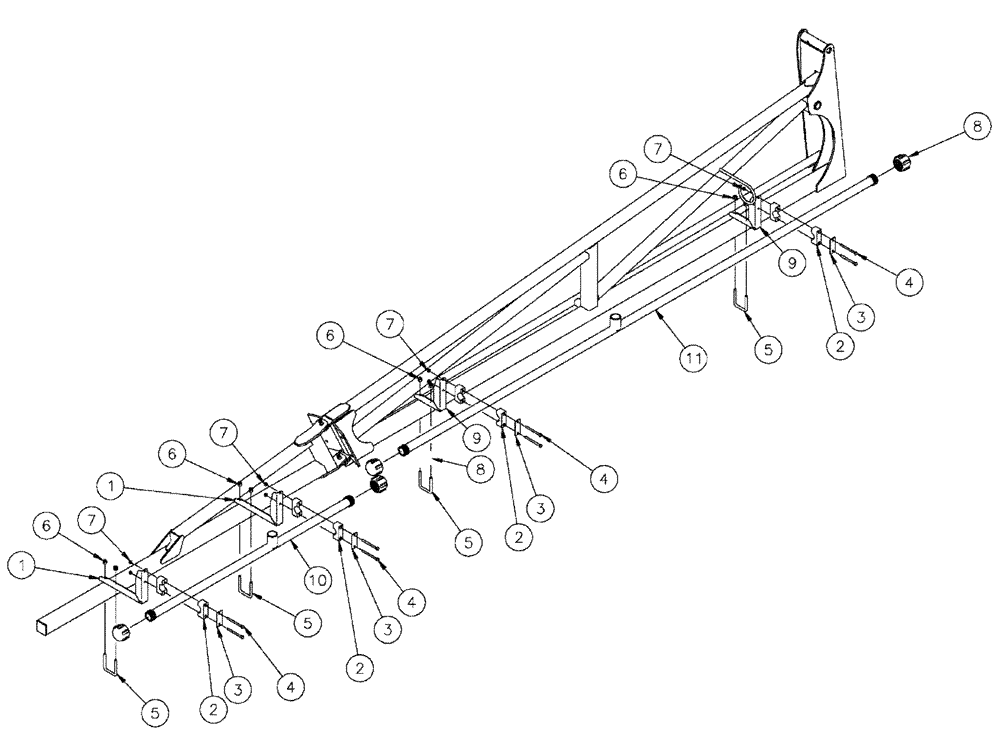

Схема запчастей Case IH SPX4260 - (09-034) - NOZZLE SPACING GROUP, 90 OUTER, OFF Liquid Plumbing
2
3
4
6
5
7
1
6
5
1
3
6
2
8
11
9
4
10
2
9
4
4
7
5
2
6
7
7
5
8
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN21618

CAP

1.25"

4шт.

9

BN323957

BRACKET

Spray Bar

2шт.

10

BN320273

TUBE

20" SPX 3 EA

1шт.

11

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.
