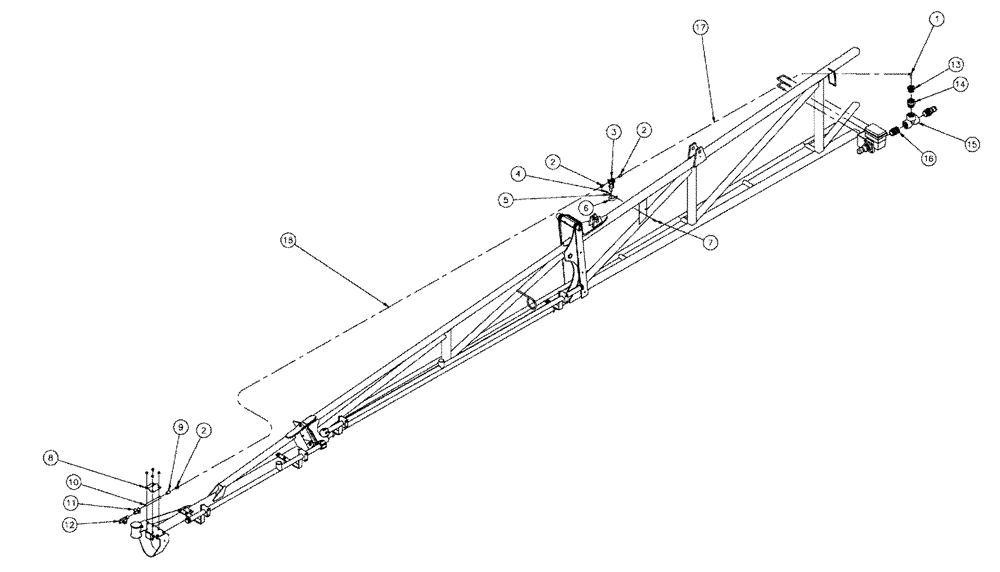

Запчасти Case IH SPX4260 (09-033) - NOZZLE SPACING GROUP, HIGH VOLUME, BOOM Liquid Plumbing

1

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

3

BN307938

VALVE

1/4 NPT

1шт.

4

BN55359

LOCK NUT,1/4"-20, SS

1шт.

5

BN50138

WASHER,1/4", SS

1шт.

6

BN570018

CLAMP

Vinyl Coated 1-7/16

1шт.

7

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

1шт.

8

BN313307

PLATE

Nozzle Clamp

1шт.

9

BN73015

COUPLING

1/4" NPT SS Full

1шт.

10

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

11

BN313256

NOZZLE INJECTION

W/Swivel

1шт.

12

BN313255

NOZZLE INJECTION

W/Check Valve

1шт.

13

BN320968

BUSHING,1-1/4" MPT x 3/8" FPT Reducing Bushing

RB, 1.25 X .375, Poly

1шт.

12a

BN74619

CAP

Service Part for Ref 12

1шт.

14

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

-1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

12b

BN69558

PLUG

Service Part for Ref 12

1шт.

15

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

16

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

17

BN321269

HOSE,0.38" ID x 8.00'

Synflex

1шт.

18

BN313254

FLEXIBLE HOSE

3/8" Synflex

1шт.
