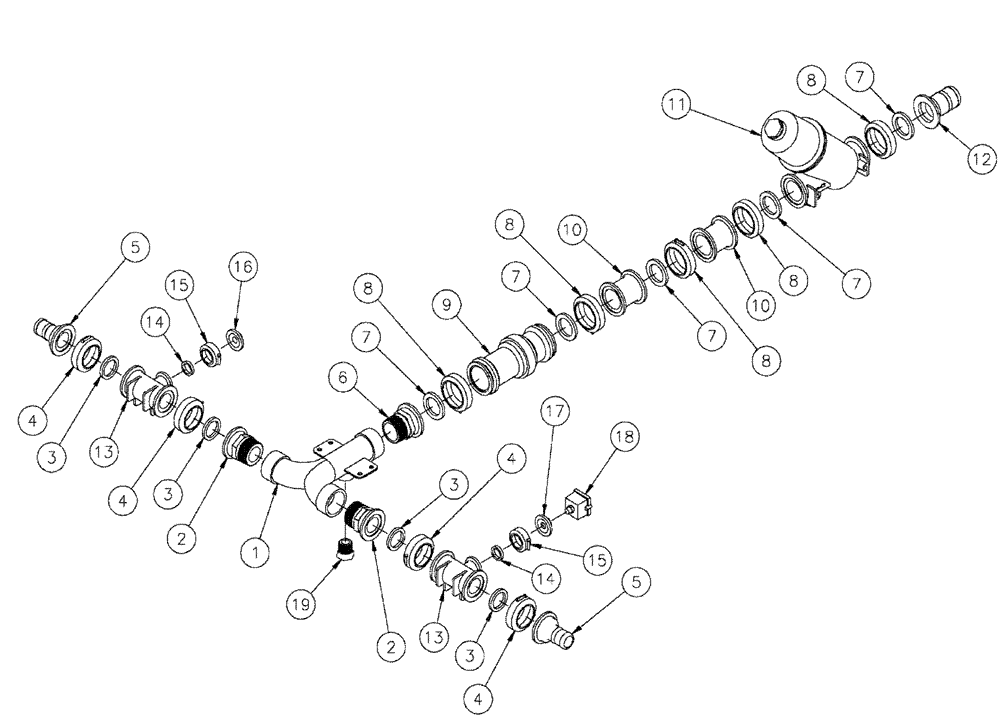

Запчасти Case IH SPX4260 (09-030) - MANIFOLD GROUP, 6 SECTION Liquid Plumbing

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-Way

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

2шт.

6

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

5шт.

8

BN313773

CLAMP,2" Full Port

2" Flange

5шт.

9

BN321304

METER

Flow, RFM 100, 2X Pulse

1шт.

10

BN325292

COUPLING

2" Fp Manfold Poly

2шт.

11

BN322937

FILTER STRAINER,STRAINER, 2" FP, 10 MESH

2" FP, 10 Mesh

1шт.

See Fig. 09-056

1шт.

12

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

13

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 Flange x 1 Flange

2шт.

14

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

15

BN303203

CLAMP,1" Flange

1 Flange

2шт.

16

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

17

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

18

BN324844

SENSOR

Digital Pressure

1шт.

19

BN73604

PLUG,1" Poly Pipe Plug

1" NPT, Pipe Poly

1шт.
