(09-029) - MANIFOLD SUPPORT GROUP, 6 SECTION OFF CENTER

Запчасти Case IH SPX4260 (09-029) - MANIFOLD SUPPORT GROUP, 6 SECTION OFF CENTER Liquid Plumbing

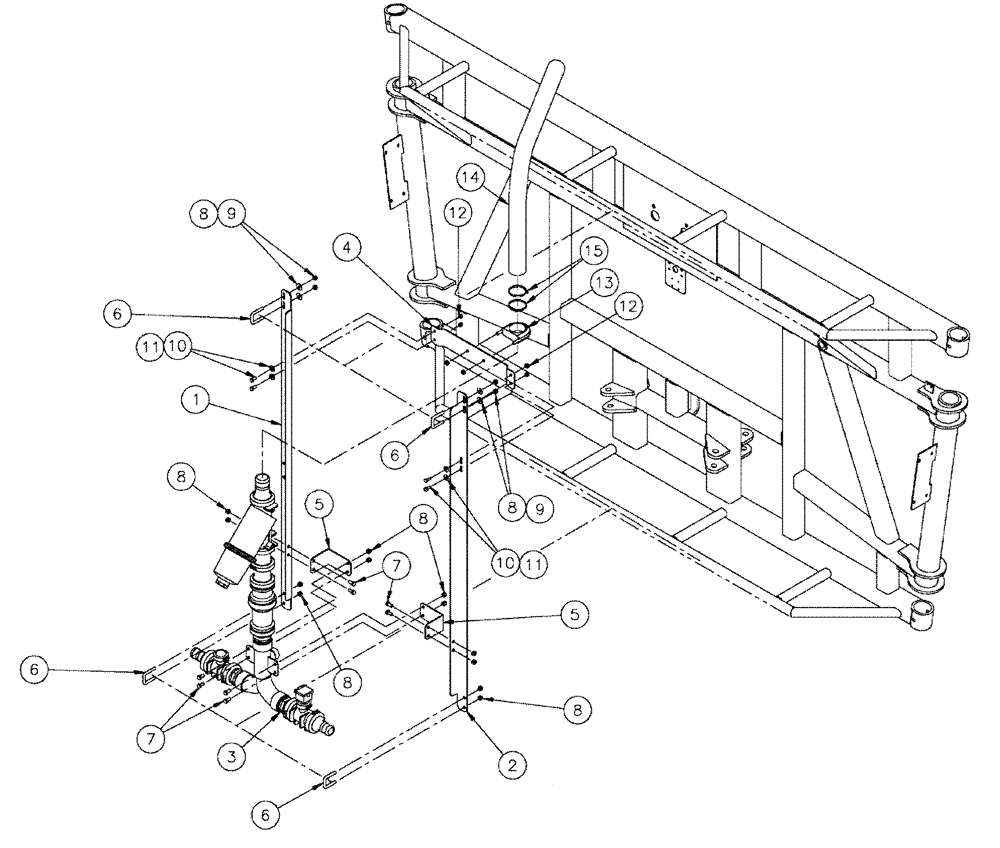

Схема запчастей Case IH SPX4260 - (09-029) - MANIFOLD SUPPORT GROUP, 6 SECTION OFF CENTER Liquid Plumbing
10
8
6
11
5
12
8
5
12
6
8
8
14
2
11
4
7
6
15
10
1
7
9
3
8
13
8
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325296

BRACKET

Manifold, LH

1шт.

2

BN325295

BRACKET

Manifold, RH

1шт.

3

BN324942

MANIFOLD

6 SECT. 778C

1шт.

See Fig. 09-030

1шт.

4

BN325194

BRACKET, SUPPORTING

Clamp, 5 SECT., CTR

1шт.

5

BN325193

BRACKET

3-Way Manifold

2шт.

6

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

7

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

11

BN50142

WASHER,5/16", Stainless Steel

4шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

13

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

14

BN324993

HOSE,2.00" ID x 219.00"

EPDM W

1шт.

15

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.
