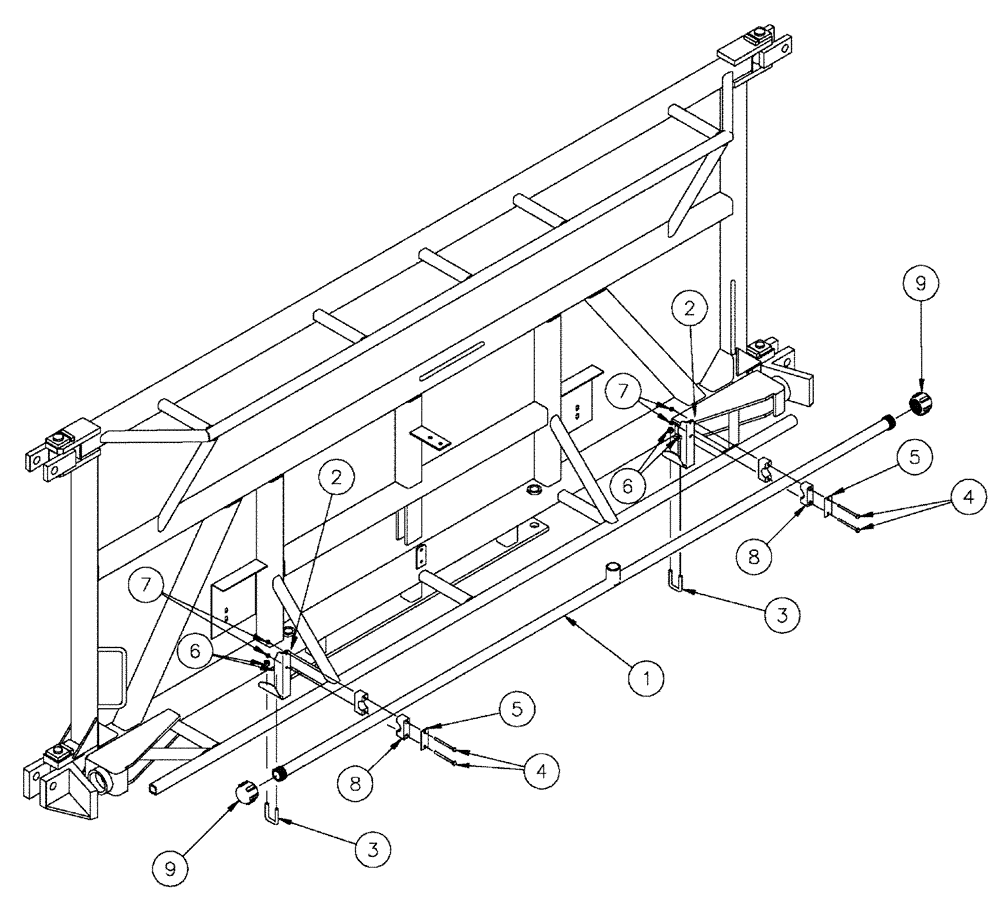

Запчасти Case IH SPX4260 (09-024) - NOZZLE SPACING GROUP, 5 SECTION CENTER Liquid Plumbing

1

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

2

BN323965

BOOM

Spray Bar

2шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN67054

CLAMP

1.315" OD

2шт.

9

BN21618

CAP

1.25"

2шт.
