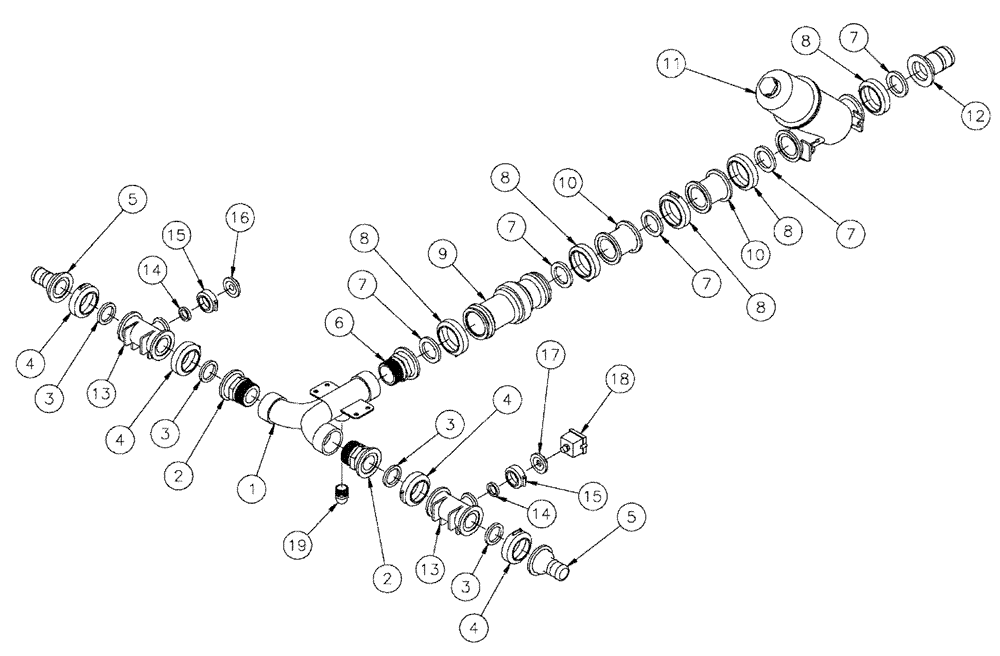

Запчасти Case IH SPX4260 (09-015) - MANIFOLD GROUP, 5 SECTION Liquid Plumbing

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-Way

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

2шт.

6

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

5шт.

8

BN313773

CLAMP,2" Full Port

2" Flange

5шт.

9

BN321304

METER

Flow, RFM 100, 2 X Pulse

1шт.

10

BN325292

COUPLING

2" FP Manifold Poly

2шт.

11

BN322937

FILTER STRAINER,STRAINER, 2" FP, 10 MESH

2" FP, 10 Mesh

1шт.

See Fig. 09-056

1шт.

12

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

13

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 Flange x 1 Flange

2шт.

14

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

15

BN303203

CLAMP,1" Flange

1Fl

2шт.

16

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

17

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

18

BN324844

SENSOR

Digital Pressure

1шт.

19

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.
