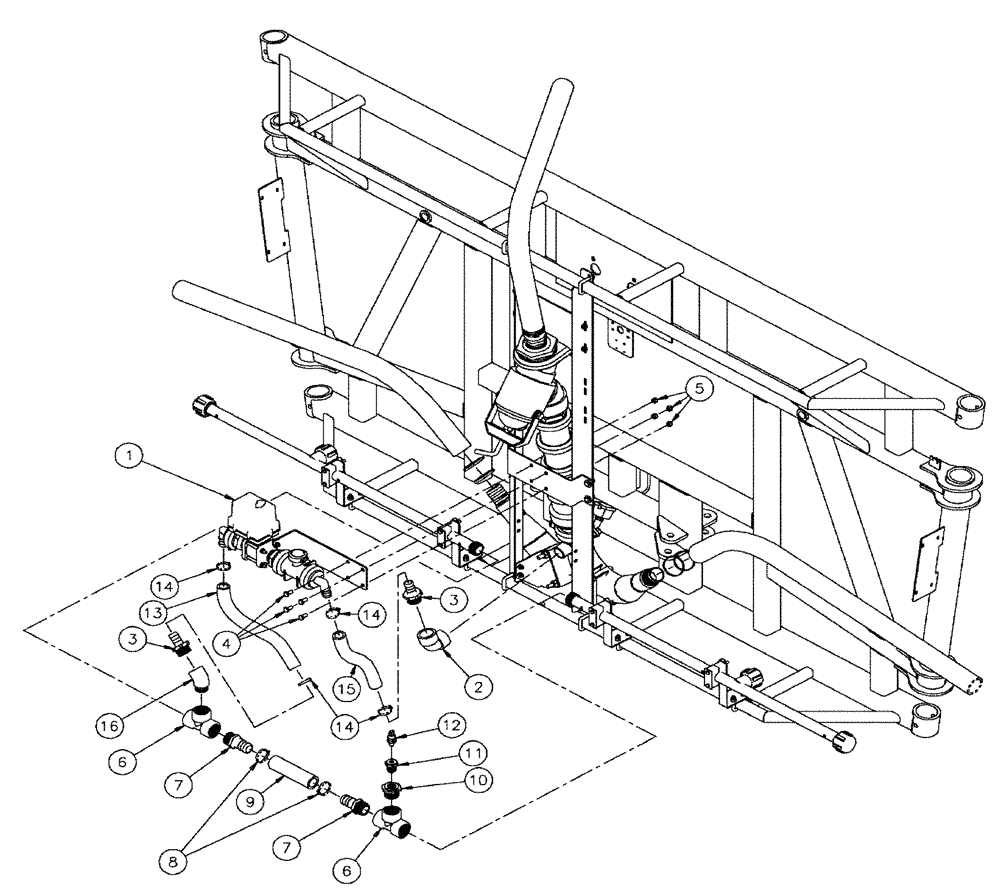

Запчасти Case IH SPX4260 (09-013) - BOOM PLUMBING GROUP, HV CTR, 5 SECTION, 20" OFF CENTER Liquid Plumbing

1

342626A1

VALVE

plumbing group, 5 section, center

1шт.

See Fig. 09-002

1шт.

2

BN313202

ELBOW

1 1/4" NPT 90 Degree

1шт.

3

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

4

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

6

BN73662

TEE

1-1/4", Poly

2шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

2шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

9

BN325091

HOSE,1.25" ID x 6.50"

EPDM

1шт.

10

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

11

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

12

86986400

SWITCH

Pressure, PMLF

1шт.

13

BN320881

HOSE,1.00" ID x 18.00"

EPDM

1шт.

14

BN310447

HOSE CLAMP

#20, Stainless Steel

4шт.

15

BN325092

HOSE,1.00" ID x 13.50"

EPDM

1шт.

16

BN313198

ELBOW

1 1/4" NPT St 45 DEG

1шт.
