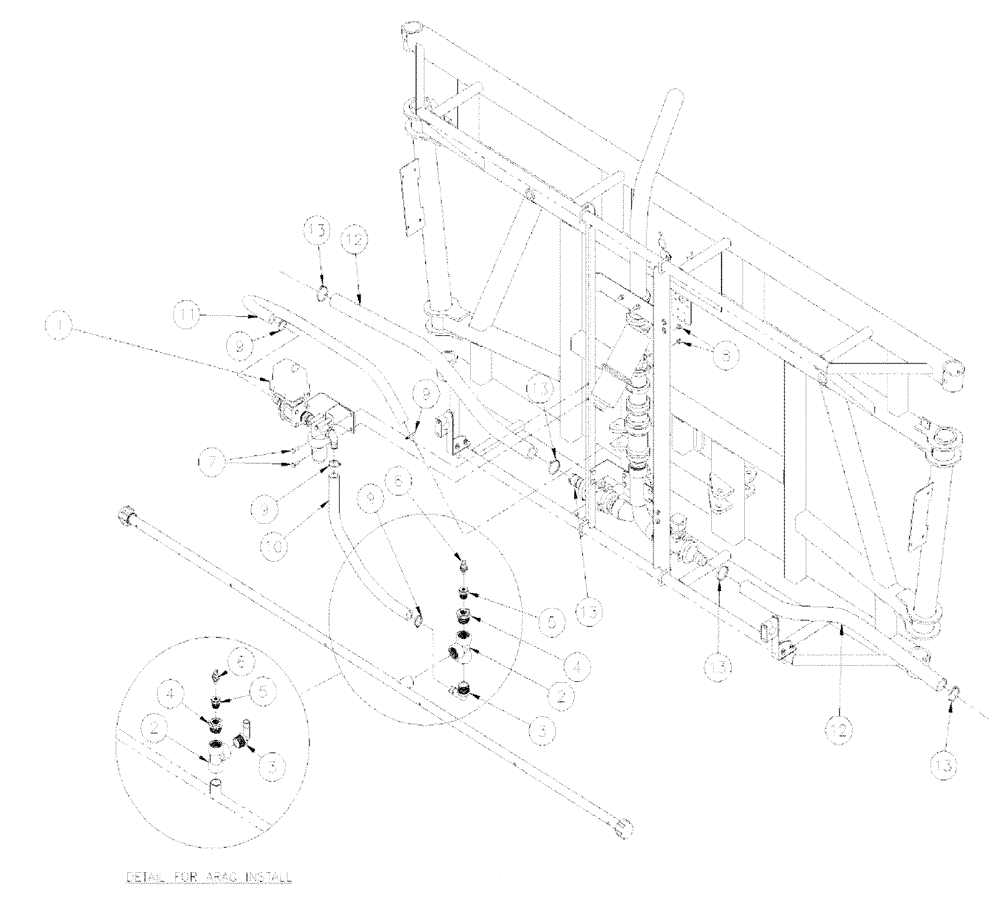

Запчасти Case IH SPX4260 (09-012) - BOOM PLUMBING GROUP, 5 SECTION, CENTER SECTION, BOTH SPACINGS Liquid Plumbing

1

BN325195

VALVE

Plumbing Group 5 SEC CTR

1шт.

See Fig. 09-003

1шт.

2

BN73662

TEE

1-1/4", Poly

1шт.

3

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

4

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

5

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

6

86986400

SWITCH

Pressure, PMLF

1шт.

7

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

9

BN310447

HOSE CLAMP

#20,304 SS

4шт.

10

BN66859

HOSE

1" EPDM x 23.00"

1шт.

11

BN69394

HOSE

1" EPDM x 44.0"

1шт.

12

342076A1

HOSE

1.5" x 147", EPDM

2шт.

13

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.
