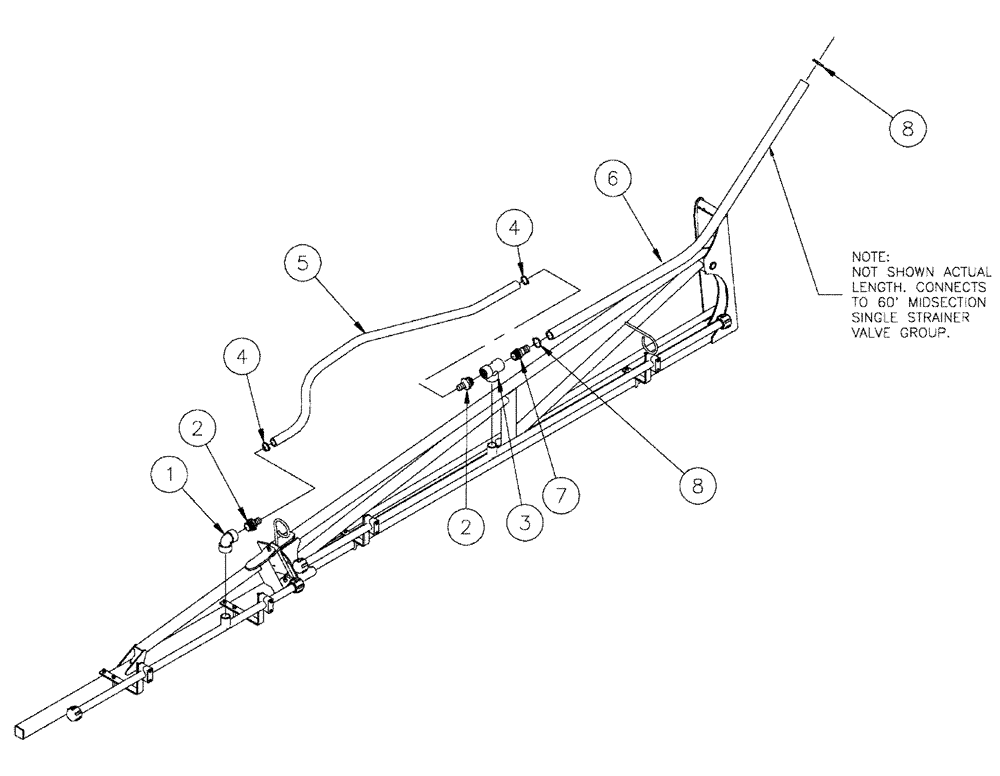

Запчасти Case IH SPX4260 (09-010) - BOOM PLUMBING GROUP, 5 SECTION 90 Liquid Plumbing

1

BN313202

ELBOW

1 1/4" NPT 90 Degree

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

342664A1

HOSE

1 1/4" x 120", suction

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.
