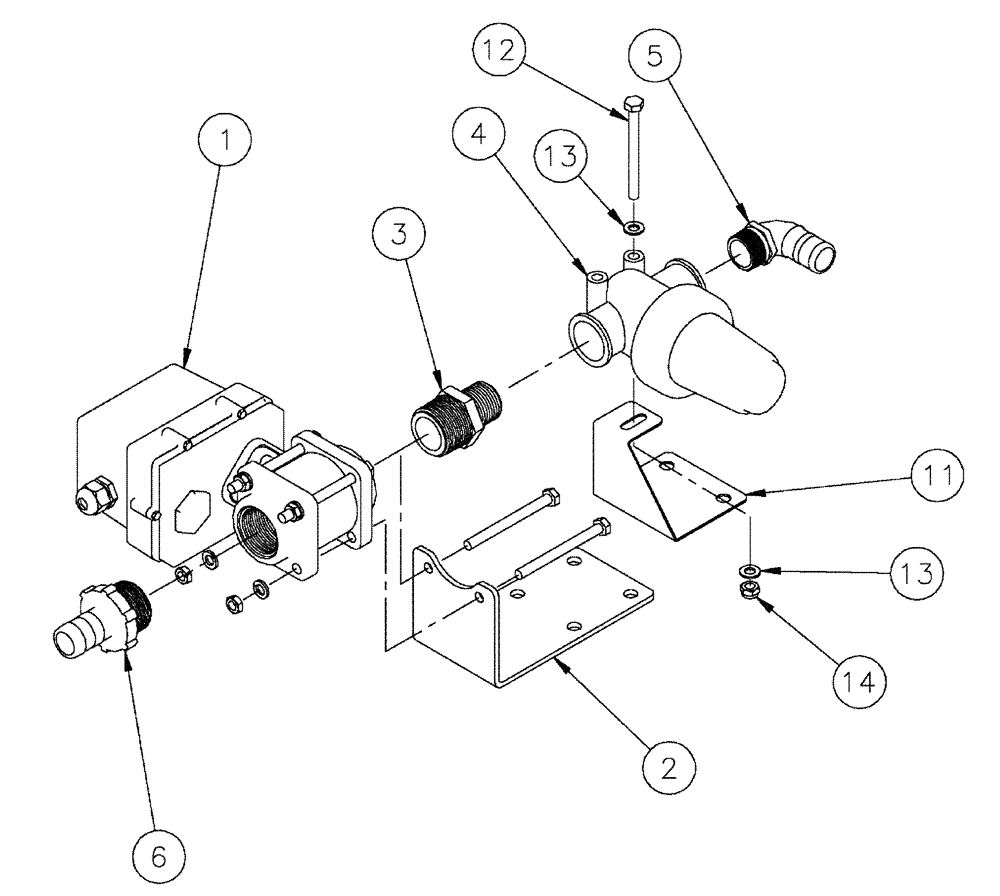

Запчасти Case IH SPX4260 (09-003) - VALVE PLUMBING GROUP, 5 SECTION, CENTER Liquid Plumbing

1

87268179

VALVE

1.25" Ball, Electric

1шт.

2

BN319996

BRACKET

NPT Ball Valve

1шт.

3

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

4

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

11

BN320060

BRACKET

CTR

1шт.

12

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

13

BN50142

WASHER,5/16", Stainless Steel

2шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.
