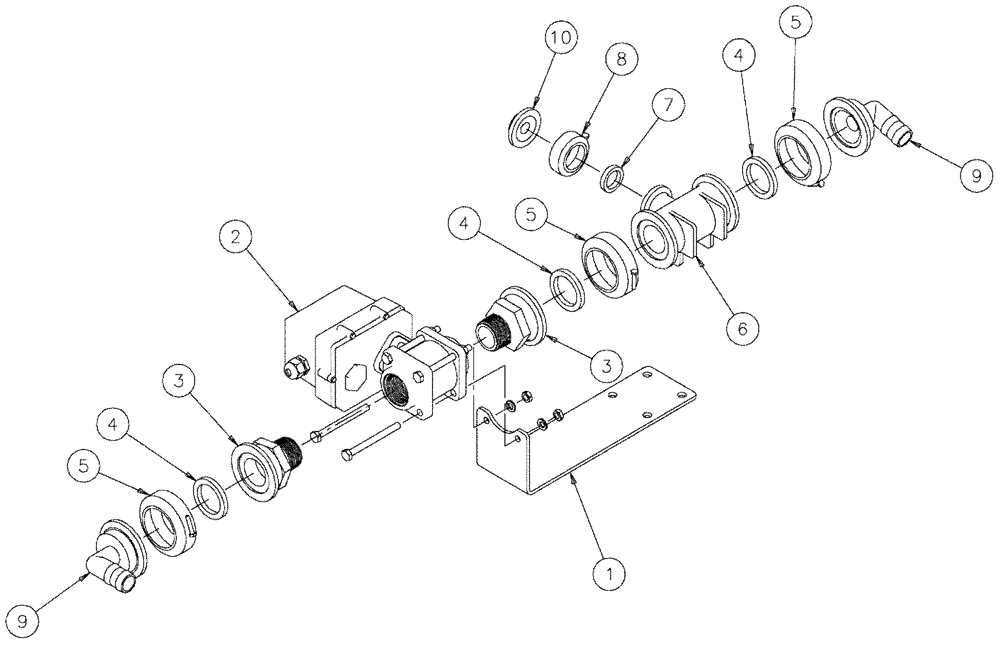

Запчасти Case IH SPX4260 (09-002) - VALVE PLUMBING GROUP, 5 SECTION, CENTER HV, 20" OFF CENTER Liquid Plumbing

1

342641A1

BRACKET

bracket, valve, HV boom

1шт.

2

87268179

VALVE

1.25" Ball, Electric

1шт.

3

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 Flange x 1 Flange

1шт.

7

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

8

BN303203

CLAMP,1" Flange

1FL

1шт.

9

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

2шт.

10

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.
