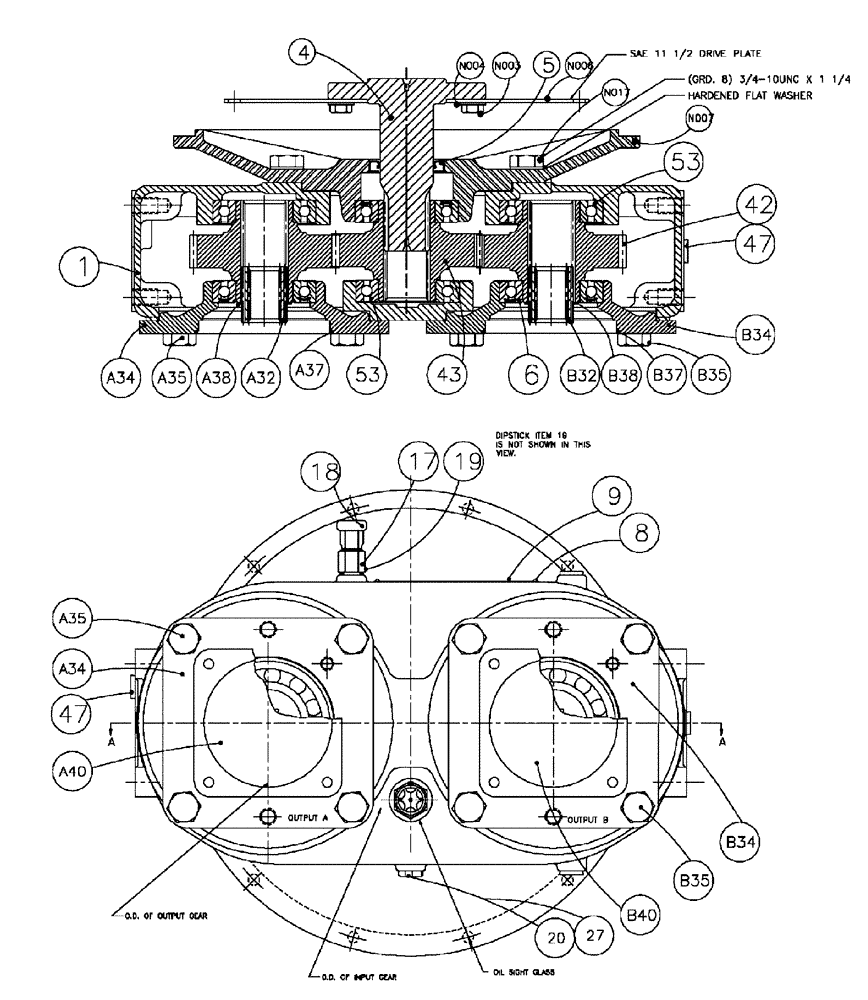

Запчасти Case IH SPX4260 (06-030) - DRIVE-2 PUMP, 1.38 UP Hydraulic Plumbing

0

BN311331

PUMP

Engine Mounted Gear Drive, 1.38 Ratio, Hydrostat Drive

1шт.

4

BN317527

ADAPTER

Drive Plate Assembly

1шт.

5

BN314738

SHAFT SEAL

1шт.

6

87267402

BALL BEARING

SKF # 6211 Rsc3

3шт.

18

BN314740

VENT

ent

1шт.

19

BN314941

DIPSTICK

Gear Increaser

1шт.

20

87752930

MAGNETIC PLUG

3/4"-16

1шт.

27

BN314739

O-RING

Drain

1шт.

42

87267403

GEAR

7P32T: 13T8/16

2шт.

43

87267404

GEAR

7P, 44T; 13T8/16

1шт.

47

87752931

PLUG

SAE 8

4шт.

53

87267405

BALL BEARING

Ball SKF #6211-C3

3шт.

a32

BN314742

ADAPTER

Spline

2шт.

a34

87267401

PUMP

Adaptor

1шт.

a37

BN314741

O-RING

Pump

2шт.

a38

87267399

SNAP RING

Gear Product

2шт.

b32

BN314742

ADAPTER

Spline

1шт.

b34

87267401

PUMP

Adaptor SAE C 2/4

1шт.

b37

BN314741

O-RING

1шт.

b38

87267399

SNAP RING

1шт.

n006

342273A1

PLATE

Engine Drive Adaptor

1шт.

BN317527

ADAPTER

Assembly, Drive Plate, Includes Ref 4 and N006

1шт.

87270243

GAUGE

Sight, Pump Drive

1шт.

Service Parts For Ref. B34

1шт.
