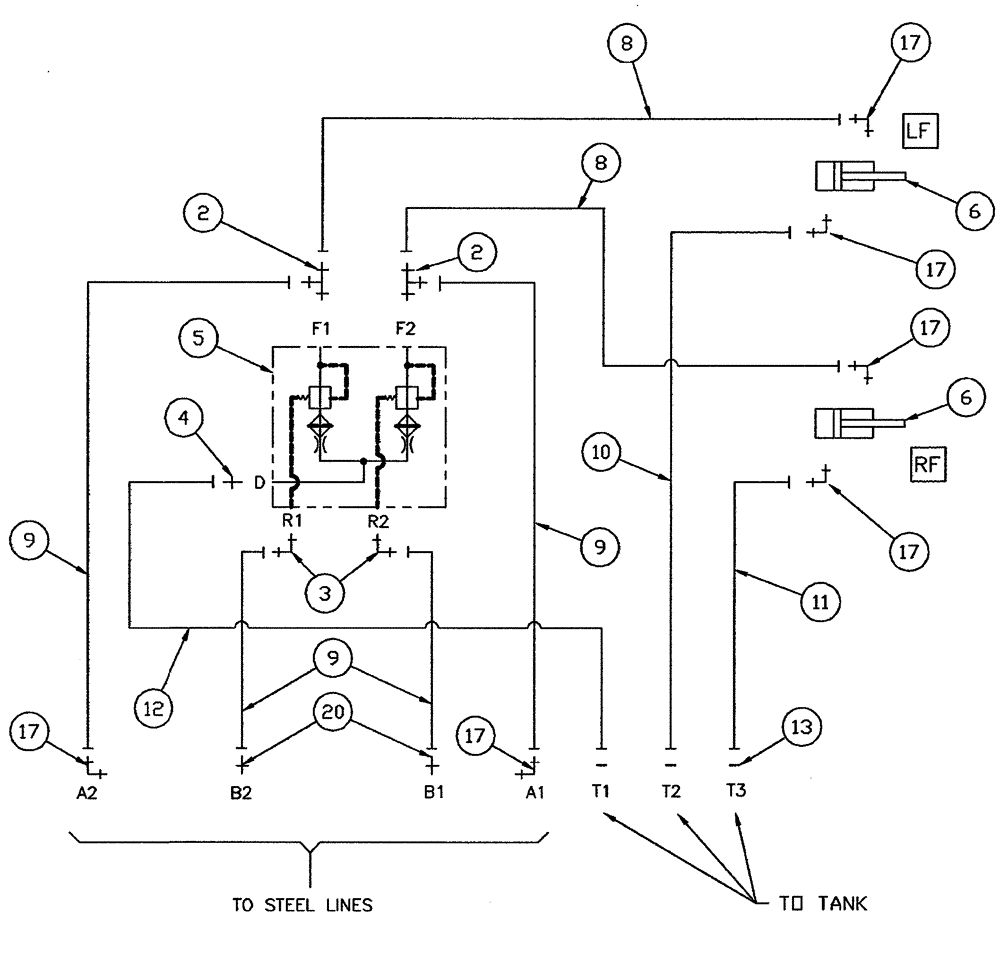

Запчасти Case IH SPX4260 (06-028) - SUSPENSION, ACTIVE HYDRAULIC {3041903} Hydraulic Plumbing

1

86528579

NUT,M8 x 1.25

2шт.

2

BN302581

FITTING

4MOR-4MOR-6MBX

2шт.

3

BN302549

ELBOW

4MOR-6MBX90

2шт.

4

BN302641

FITTING

4MOR-6MB

1шт.

5

BN304081

BLOCK

Purge (Cylinder)

1шт.

6

BN313249

HYDRAULIC CYLINDER

Suspension

2шт.

See Fig. 04-025

1шт.

6

BN313249R

REMAN-HYD CYLINDER

Suspension

2шт.

6

BN313249C

CORE-HYD CYLINDER

Return Number

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

BN313057

HOSE

4 X 166

2шт.

9

BN313059

HOSE

4 X 36

4шт.

10

BN313060

HOSE

4 X 175

1шт.

11

BN313061

HOSE,6.35mm ID x 5080mm L, SAE 100R17

4 X 200

1шт.

12

BN313062

HOSE

4 X 35

1шт.

13

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

For -4 FFOR

3шт.

14

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

BN313399

LOCKING TAB

1шт.

17

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

6шт.

18

BN313250

SUSPENSION

2шт.

See Fig. 04-026

1шт.

19

BN322741

SLEEVE

Hose, 1.42 ID X 12

2шт.

20

BN302640

FITTING

4MOR-4MB

2шт.
