(06-024[01]) - VALVE, 6-SECTION, BOOM/SUSPENSION

Запчасти Case IH SPX4260 (06-024[01]) - VALVE, 6-SECTION, BOOM/SUSPENSION Hydraulic Plumbing

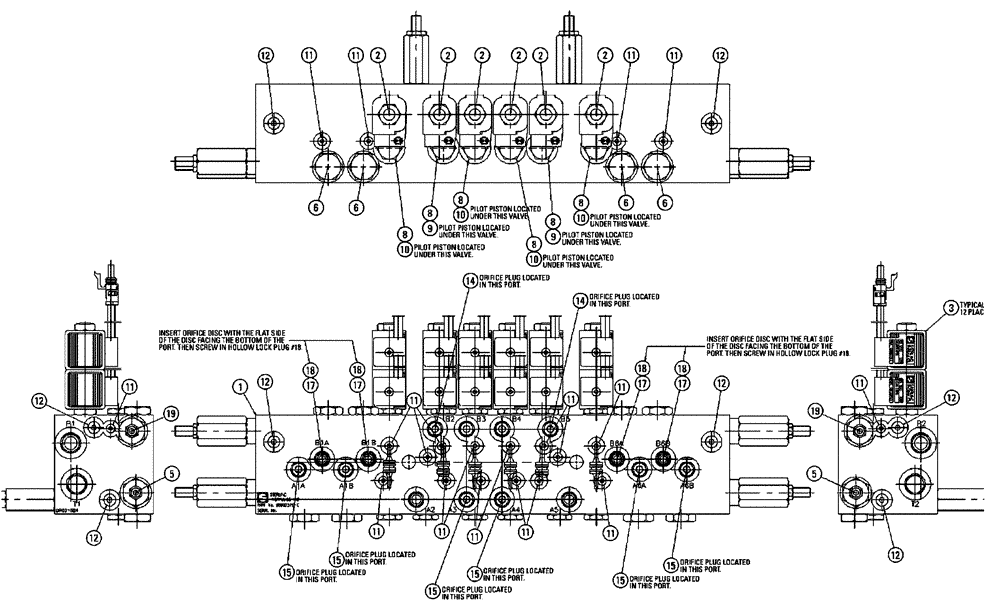

Схема запчастей Case IH SPX4260 - (06-024[01]) - VALVE, 6-SECTION, BOOM/SUSPENSION Hydraulic Plumbing
12
10
11
19
5
11
2
18
15
11
10
3
11
11
11
10
11
12
17
15
6
8
15
12
12
11
11
9
1
8
2
18
9
8
15
5
12
15
2
17
6
2
11
14
10
8
12
17
19
17
8
14
11
15
12
8
11
2
6
18
6
11
18
12
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343291A1

HYDRAULIC VALVE

Block, M/C

1шт.

2

343450A1

VALVE

3/4 Way Solenoid

6шт.

3

343451A1

COIL

12V DC (Packard-Female With 3 Amp Diode)

12шт.

4

343452A1

VALVE, PRESSURE RELI

EF (1 gpm @ 200 psi)

2шт.

5

343453A1

VALVE, PRESSURE RELI

EF (1 gpm @ 2950 psi)

2шт.

6

343454A1

CHECK VALVE

8шт.

7

343455A1

CHECK VALVE

2шт.

8

343456A1

CHECK VALVE

10шт.

9

343457A1

PISTON

Pilot

2шт.

10

343458A1

PISTON

Pilot

4шт.

11

86632547

PLUG,Hex, 5/16"-24 ORB

36шт.

12

343460A1

PLUG

zero-leak hollow hex

14шт.

14

343461A1

PLUG

orifice (1/16" NPTF with 1.50 mm orifice)

2шт.

15

343462A1

PLUG

orifice (1/16" NPTF with 1.00 mm orifice)

6шт.

16

343463A1

PLUG

Orifice (1/16" NPTF With 1.75 mm Orifice)

2шт.

17

343464A1

DISC

Orifice (0.75MM Orifice)

4шт.

18

343465A1

PLUG

Hollow Lock (7/16"-20UNF)

4шт.

19

343466A1

VALVE, PRESSURE RELI

EF (1 GPM @ 1500 PSI)

2шт.
