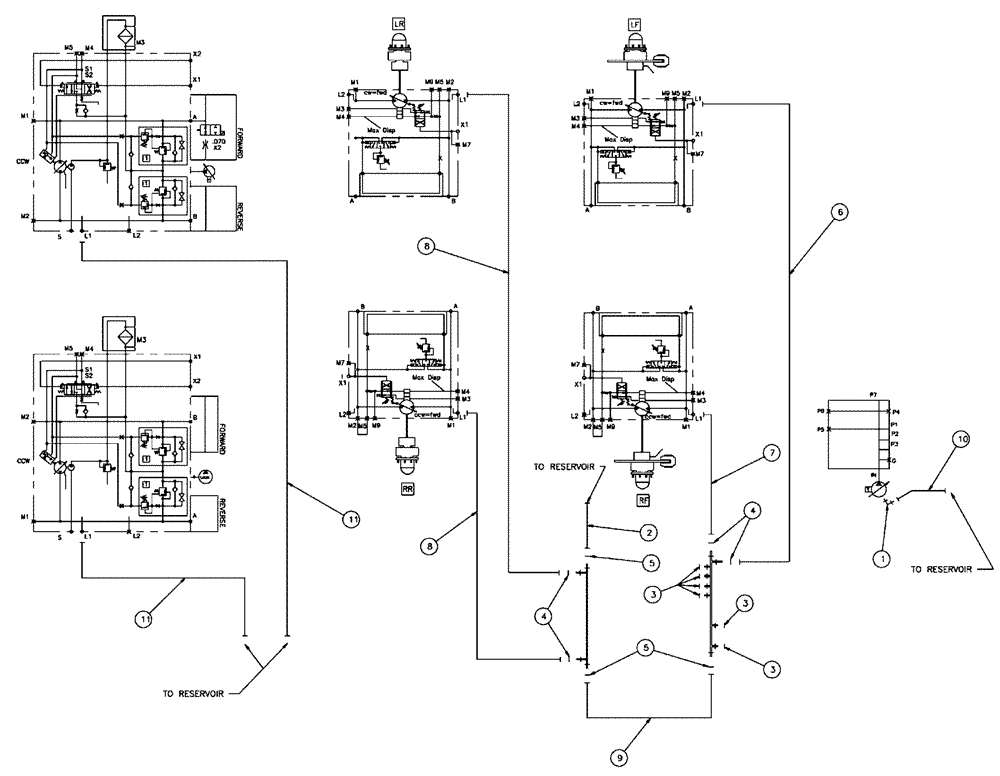

Запчасти Case IH SPX4260 (06-020) - HYDRAULIC GROUP, CASE DRAIN Hydraulic Plumbing

1

BN302558

ELBOW

8 MOR 8MB X 90

1шт.

2

BN316681

HOSE ASSY.,25.4mm ID x 1676.4mm L, SAE 100R4

16 X 66"

1шт.

3

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR-4FFOR

6шт.

4

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP Standard #018

4шт.

5

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

3шт.

6

BN307807

HOSE ASSY.,19.05mm ID x 3657.6mm L, SAE 100R1

1шт.

7

BN307808

HOSE ASSY.

1шт.

8

BN307809

HOSE ASSY.

2шт.

9

BN307811

HOSE ASSY.

#16 X 35"

1шт.

10

BN309866

HOSE

08 X 45

1шт.

11

BN307860

HOSE ASSY.

2шт.
