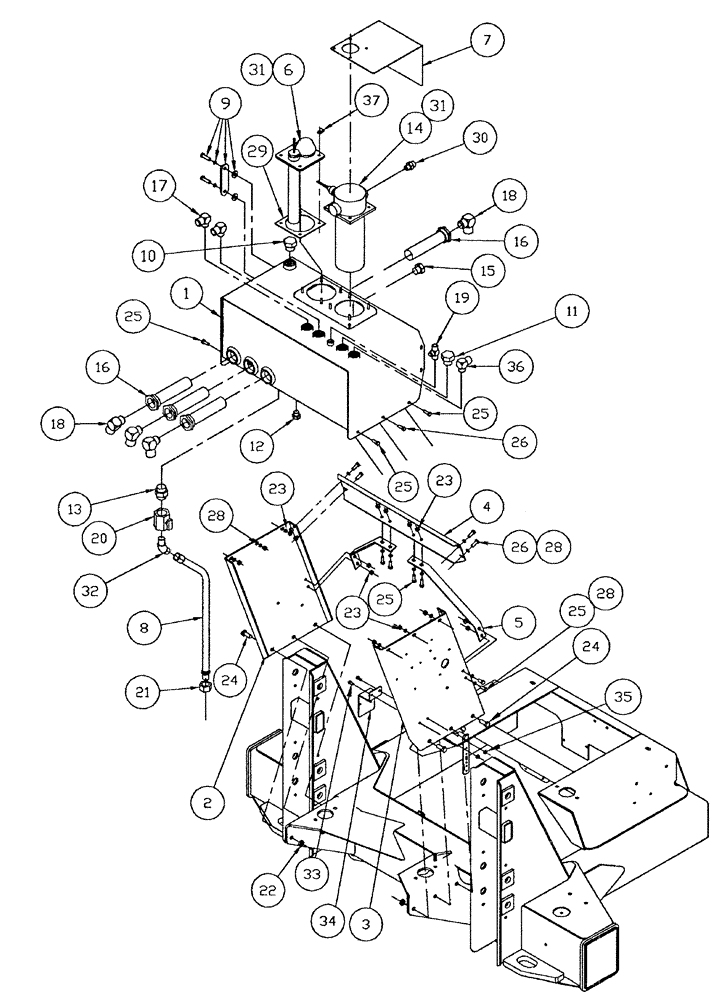

Запчасти Case IH SPX4260 (06-019) - OIL TANK GROUP Hydraulic Plumbing

1

BN322793

TANK

1шт.

2

BN323023

BRACKET

Oil Tank, LH

1шт.

3

BN323024

BRACKET

Oil Tank, RH

1шт.

4

BN305077

CHANNEL

1шт.

5

BN305074

SUPPORT

2шт.

6

BN322791

LEVEL

Temp Switch Group

1шт.

7

BN317608

SHIELD

Filter Assy

1шт.

8

BN307806

HOSE ASSY.

1шт.

9

BN322594

GAUGE

Sight W/Temperatur

1шт.

10

BN55354

PLUG

1 5/8" 12O-Ring-Hex

1шт.

11

BN60479

PLUG

1 5/16 12 O-Ring-Hex

1шт.

12

BN52319

PLUG

1/2" NPT Magnetic STL

1шт.

13

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

14

BN313777

FILTER

FILTER, OIL Assembly-In Tank

1шт.

See Fig 06-031 For Service Parts

1шт.

15

BN304900

PLUG

SAE-32

1шт.

16

BN303528

STRAINER ASSY.

32Mbx-20Fb, 100

4шт.

17

BN302570

ELBOW

12MOR-16MBX90

2шт.

18

BN302577

ELBOW

20MOR-20MBX90

4шт.

19

BN302585

FITTING

8MOR-8MOR-8MBX

1шт.

20

BN53473

VALVE,1" NPT

SS-Ball (2-Way) 1" Np

1шт.

21

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

22

832-46416

NUT,M16 x 2, Cl 8

6шт.

23

100037

LOCK NUT,M10 x 1.5, Cl 8

18шт.

24

86509867

BOLT,Hex Flg, M16 x 40mm

6шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

14шт.

26

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

28

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

18шт.

29

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

30

BN305058

FITTING

20MOR-24MB

1шт.

31

86528579

NUT,M8 x 1.25

9шт.

32

BN442008

ELBOW

45 -16MP X -16MJIC

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

BN311206

BRACKET

Block Mount

1шт.

35

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

36

BN302574

ELBOW

16MOR-16MBX90

1шт.

36a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

O-ring boss end

1шт.

36b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

37

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
