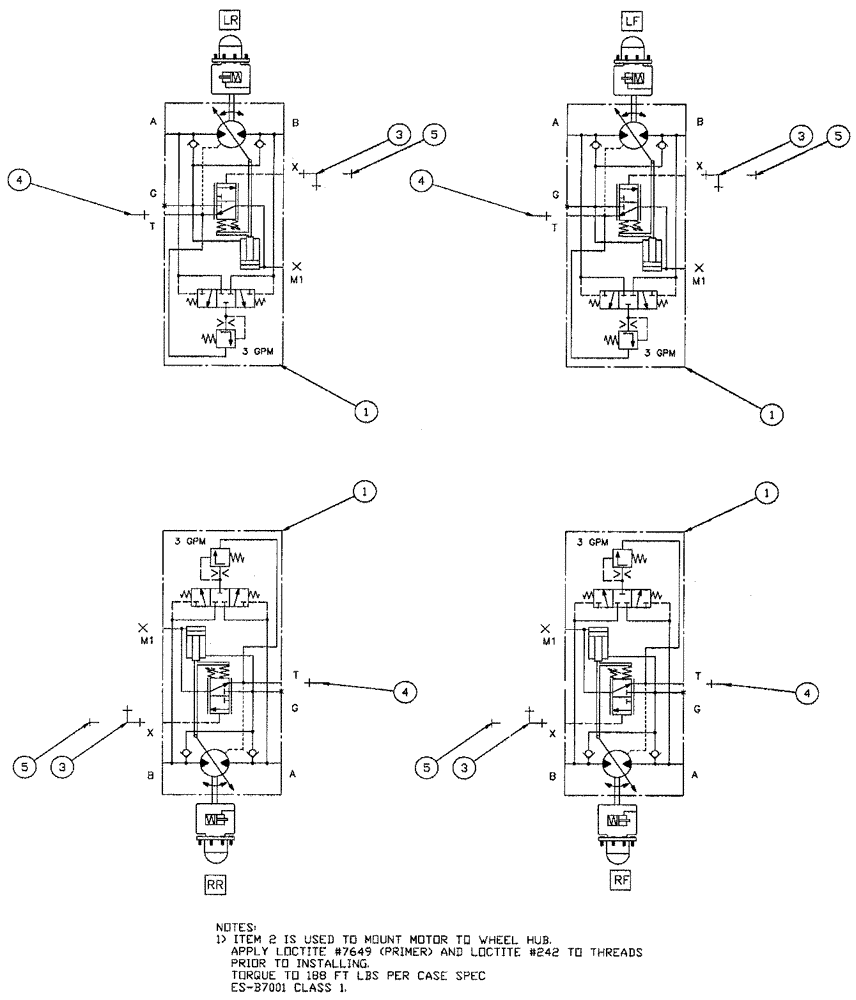

Запчасти Case IH SPX3320 (06-002) - WHEEL MOTOR GROUP Hydraulic Plumbing

1

87269799

MOTOR

Wheel, 55cc

4шт.

1

87269799R

REMAN-HYD MOTOR

SPX3320

4шт.

1

87269799C

CORE-MOTOR HYDRAULIC

Return Number

4шт.

87603550

RING

RETAINING

1шт.

Service Parts for Ref. 1

1шт.

87603551

SEAL

SHAFT

1шт.

Service Parts for Ref. 1

1шт.

87603552

PLATE

BACK-UP

1шт.

Service Parts for Ref. 1

1шт.

87603553

O-RING

1шт.

Service Parts for Ref. 1

1шт.

87603554

O-RING,4mm Thk x 150mm ID, 75 Duro

1шт.

Service Parts for Ref. 1

1шт.

87603547

CONTROL

1шт.

Service Parts for Ref. 1

1шт.

87603555

GEAR SET

CONTROL

1шт.

Associated Part of Control, P/N 87603547

1шт.

87603556

CARTRIDGE

FLUSH & BOOST PRESS.

1шт.

Associated Part of Control, P/N 87603547

1шт.

2

868-16040

12 PT SCREW,M16 x 40mm, Cl 12.9

M16 2 X 40 12PT 12.9

8шт.

3

87584271

ADAPTER

REWORKED 90, 6 MOR

4шт.

4

BN302650

FITTING

8 MOR-8 MB

4шт.

5

87595456

PLUG

ORB, SOC HD 5/16-24

4шт.
