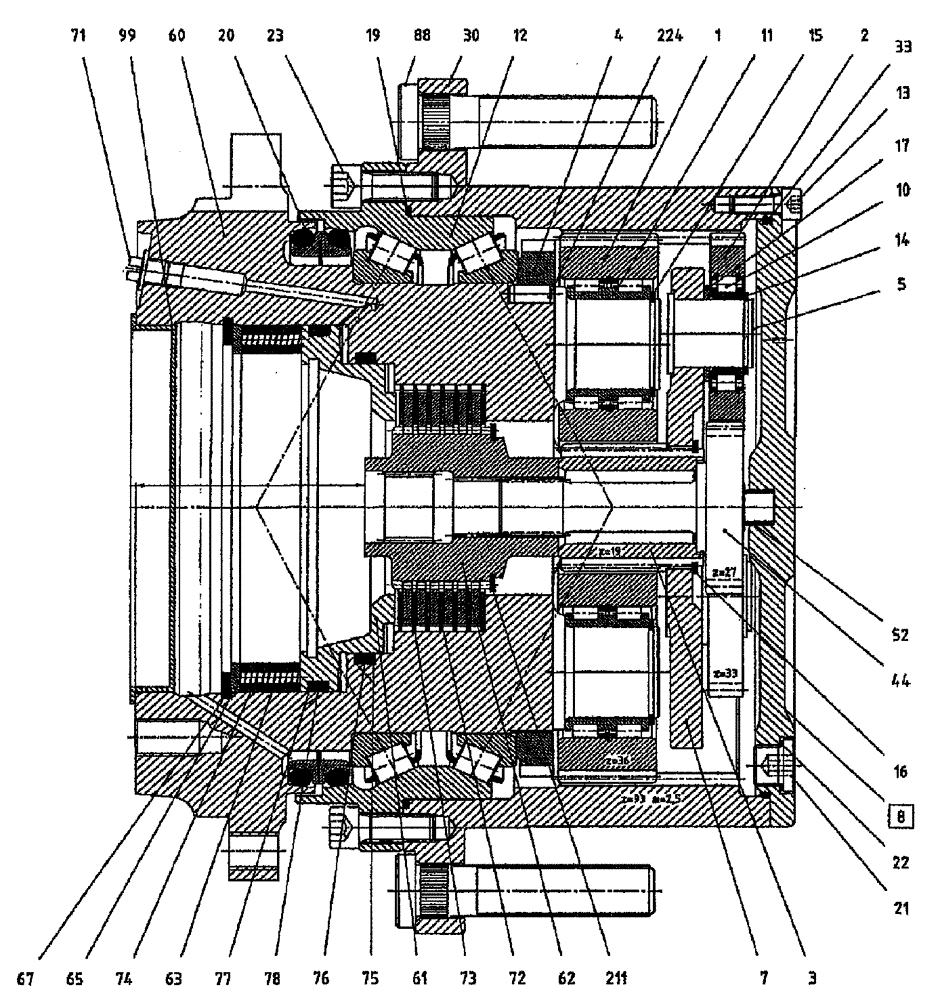

Запчасти Case IH SPX3320 (05-002) - GEARBOX, PLANETARY 25.2:1 Hub, Wheel & Tires

0

87269800

GEARBOX

Planetary 25.2:1

1шт.

84280675R

REMAN-GEARBOX

SPX3320 (11/06-4/09), Reman For New P/N 87269800

1шт.

84280675C

CORE-GEARBOX

Return Number

1шт.

1

87550016

PLANETARY GEAR

4шт.

2

87550046

PLANETARY GEAR

25.2:1

3шт.

3

87550018

UPPER LINK

GEAR, SUN

1шт.

4

87550019

NUT

SHAFT

1шт.

5

87550020

PIN

PLANET

3шт.

7

87550047

PLANET CARRIER

1шт.

8

NS

NOT SERVICED

Cover, End

1шт.

10

87550022

BEARING ASSY

CYLINDRICAL

3шт.

11

87550023

BEARING ASSY

CYLINDRICAL

4шт.

12

87550024

TAPERED BEARING

TAPERED

1шт.

13

87550025

BOLT

SOCKET HEAD

12шт.

14

87550026

SNAP RING

3шт.

15

87550030

SNAP RING

4шт.

16

87550031

SNAP RING

1шт.

17

87550032

RING

STAY

3шт.

19

87550033

O-RING

1шт.

20

87550034

SEAL

FACE

1шт.

21

87550035

PLUG

Screw

2шт.

22

87550036

RING

2шт.

23

87550037

BOLT

SOCKET HEAD

8шт.

25

87272657

SEAL KIT

GFT PLANETARY

1шт.

Includes Refs. 75, 76, 77 and 78

1шт.

26

87272656

REPAIR KIT

BRAKE DISC

1шт.

Includes Refs. 72, 73 and 74

1шт.

30

NS

NOT SERVICED

Gear, Ring

1шт.

33

87550038

O-RING

1шт.

44

87550048

UPPER LINK

GEAR, SUN

1шт.

52

87550041

SPACER

RING

1шт.

60

NS

NOT SERVICED

Spindle

1шт.

61

87550042

BRAKE

PISTON

1шт.

62

NS

NOT SERVICED

Coupler

1шт.

63

87550043

SPACER

RING

1шт.

65

84261635

BASE PLATE

End Plate

1шт.

67

87550044

SNAP RING

1шт.

71

NS

NOT SERVICED

Plug, Screw

1шт.

88

87550045

STUD

10шт.

99

NS

NOT SERVICED

Plug, Cap

1шт.

211

87550049

SNAP RING

1шт.

224

87550050

PIN

2шт.
