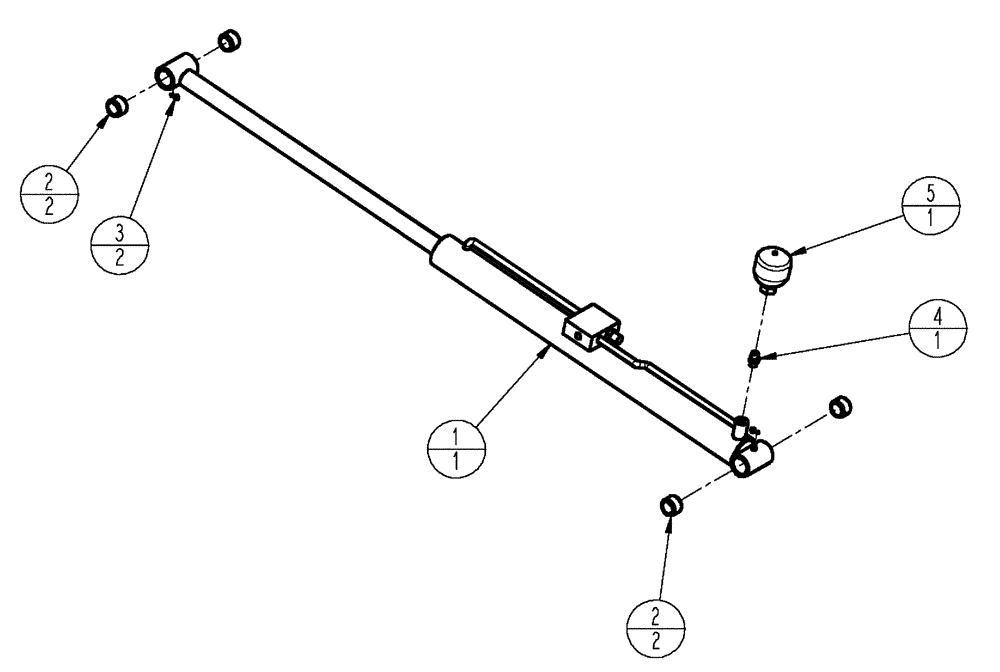

Запчасти Case IH SPX3320 (07-012) - CYLINDER GROUP, PARALLEL LINKS Cylinders

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Hydraulic, 2.5 x 28.5 x 1.5

1шт.

See Fig. 07-013

1шт.

2

87271483

BUSHING

SPRING

4шт.

3

BN69951

CAP

Grease

2шт.

4

BN313038

FITTING

6MB 6MB

1шт.

5

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.
