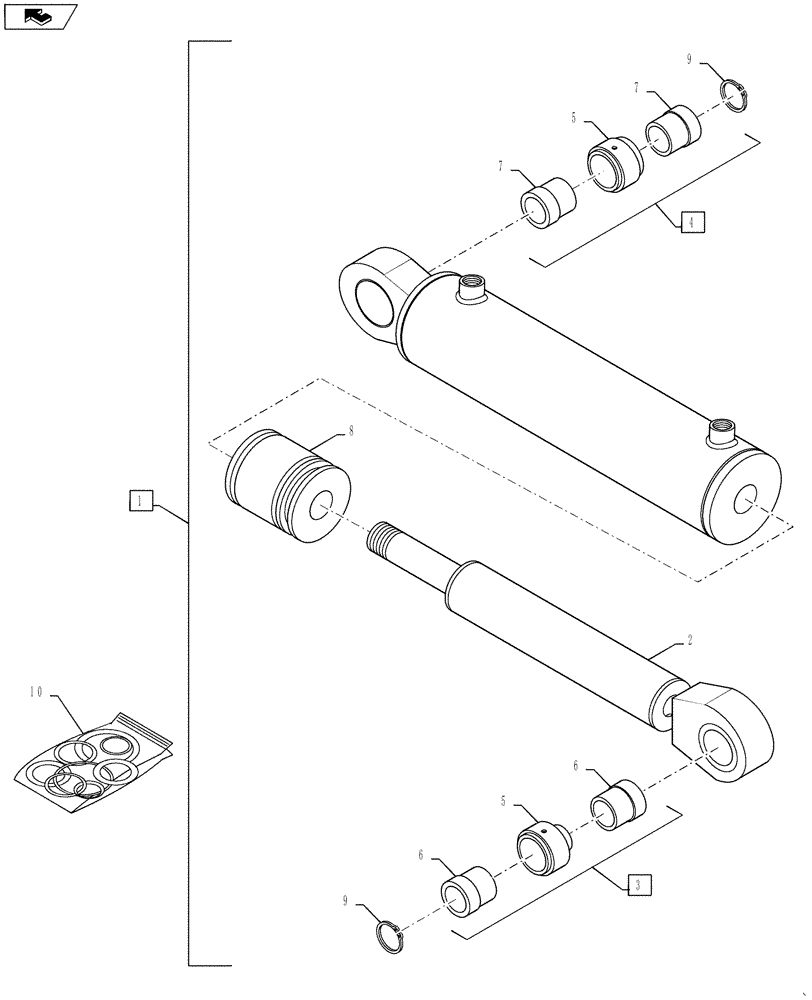

Запчасти Case IH SPX3320 (07-005) - INNER BOOM FOLD CYLINDER Cylinders

1

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Inner Boom Fold, Rear, 2.50 x 21.62 x 1.375

1шт.

87266460R

REMAN-HYD CYLINDER

SPX3320 - PATRIOT SPRAYER (11/06-4/09)

1шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

2

87267943

ROD

1шт.

3

87746972

SPHERICAL BEARING,20.09mm ID x 50.8mm OD x 51.82mm W

Rod End

1шт.

4

87746971

BUSHING,20.09mm ID x 50.8mm OD x 55.63mm W

Tube End

1шт.

5

87266307

SPHERICAL BEARING

Spherical

2шт.

6

87269921

SPACER

Rod End

2шт.

7

87269922

SPACER

Tube End

2шт.

8

84143345

JACK PISTON

1шт.

9

100-21200

SNAP RING,2", Int, #200

2шт.

10

87267940

SEAL KIT

Kit, Inner Boom Fold Rear Cylinder

1шт.
