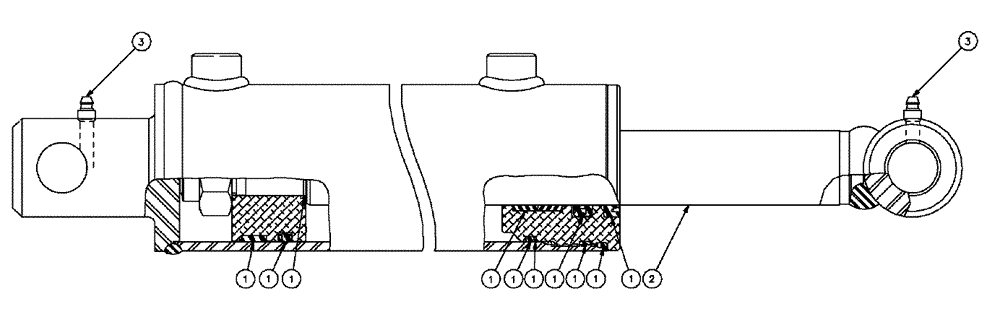

Запчасти Case IH SPX3320 (07-003) - BOOM LEVEL CYLINDER Cylinders

1

87270349

SEAL KIT

Seal Cylinder 87266461/235

1шт.

2

87270350

ROD

Cylinder #87266461

1шт.

3

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Hydraulic, 3.00 x 21 x 1.50

1шт.

87266461R

REMAN-HYD CYLINDER

SPX3320 PATRIOT SPRAYER, Hydraulic (11/06-4/09)

1шт.

87266461C

CORE-HYD CYLINDER

Return Number

1шт.
