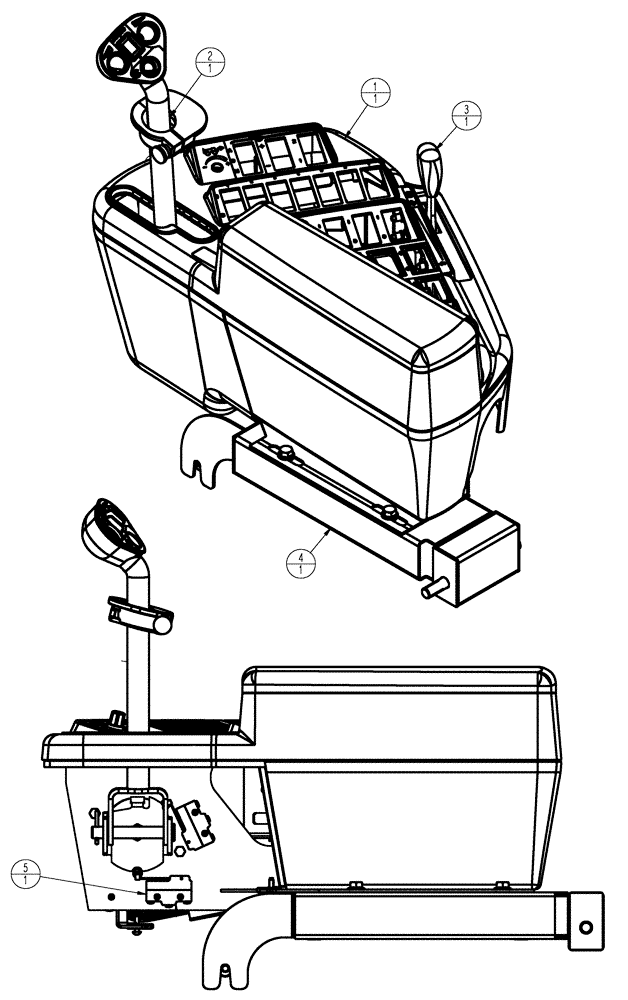

Запчасти Case IH SPX3320 (01-049) - RH CONSOLE GROUP PACKAGE Cab Interior

1

87270586

RH CONSOLE, SUB ASSY

1шт.

See Fig. 01-030

1шт.

2

NS

NOT SERVICED

Lever, Prop Control Assembly

1шт.

See Fig. 01-036

1шт.

3

87271786

RH CONSOLE THROTTLE GROUP

1шт.

See Fig. 01-034

1шт.

4

87270766

RH CONSOLE MOUNT ASSY

1шт.

See Fig. 01-029

1шт.

5

87486049

PACKAGE, RH CONSOLE ELECTRIC

1шт.

See Fig. 01-031

1шт.

6

87728471

HARNESS

RH console, hyd

1шт.

7

87728474

HARNESS

product cab

1шт.

8

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

9

824-1403

NUT,M3, Cl 5

4шт.
