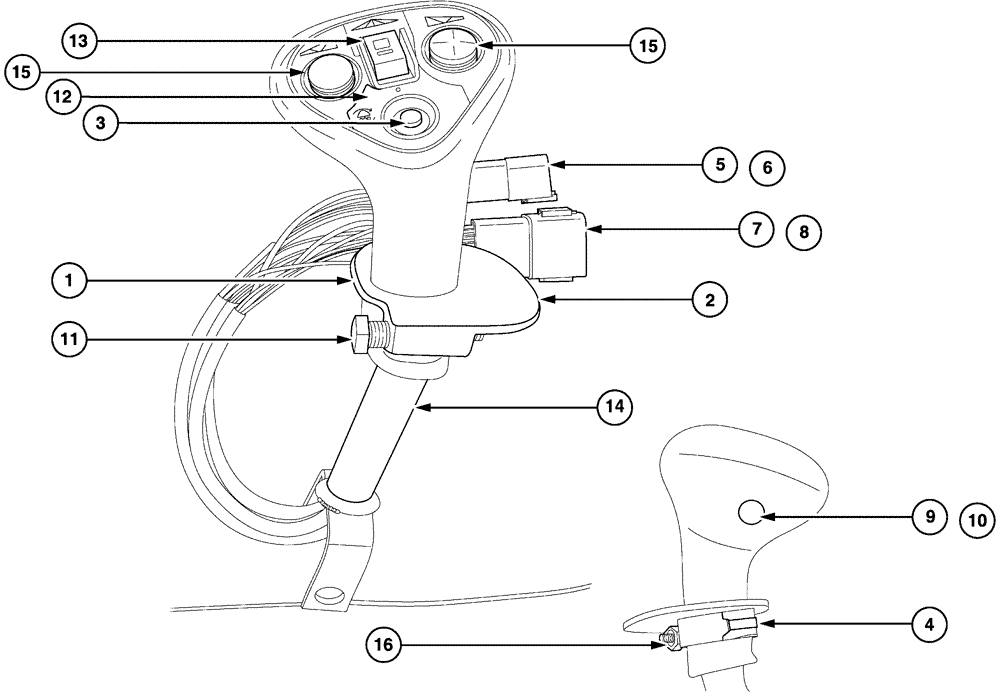

Запчасти Case IH SPX3320 (01-040[01]) - PROP CONTROL LEVER ASSEMBLY, COLOR Cab Interior

1

116150A1

SUPPORT

palm rest LH

1шт.

See Fig. 01-042

1шт.

2

116152A1

SUPPORT

palm rest RH

1шт.

See Fig. 01-042

1шт.

3

127597A1

SWITCH

unloader auger

1шт.

4

1343962C1

CLIP,ELECTRICAL

Palm Rest

1шт.

See Fig. 01-042

1шт.

5

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 pin type LY

1шт.

6

225353C1

WEDGE,Lock, Black

TYPE W6P

1шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 pin type NA

1шт.

8

87055164

WEDGE

Type W 12P

1шт.

9

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

10

282056A1

PLUG

double d

1шт.

11

86987885

KNOB

PALM REST

1шт.

See Fig. 01-042

1шт.

12

NS

NOT SERVICED

Plate Assembly, Prop Control

1шт.

See Fig. 01-043

1шт.

13

BN321530

SWITCH

Spray On/Off

1шт.

14

113314A2

CONTROL LEVER

propulsion

1шт.

See Fig. 01-042

1шт.

15

BN324896

SWITCH

Assy Boom Cntrl

1шт.

16

BN50054

NUT,1/4"-20, SS

2шт.
