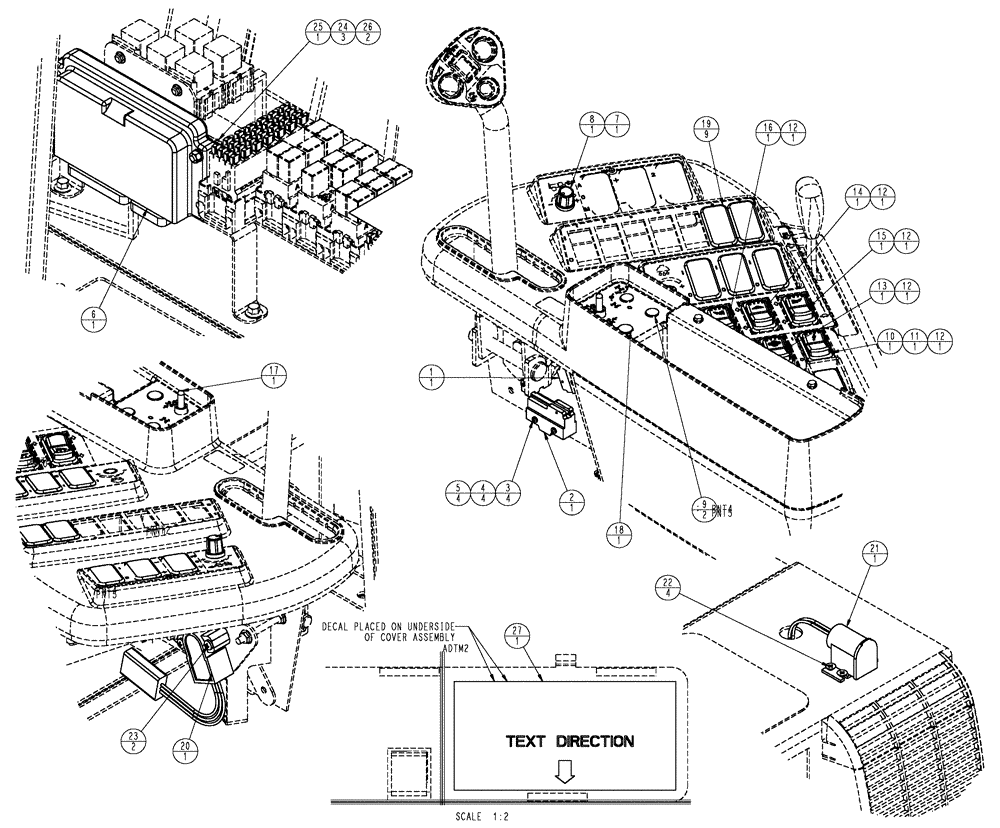

Запчасти Case IH SPX3320 (01-034) - RH CONSOLE, ELECTRIC - END YEAR 01/2009 Cab Interior

1

BN323495

ADAPTER

Reverse

1шт.

See Fig. 01-037

1шт.

2

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

See Fig. 01-036

1шт.

3

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

4

87529299

WASHER,3.3mm ID x 7mm OD x 0.5mm Thk

3.3 X 7 X .5 CST D

4шт.

5

824-1403

NUT,M3, Cl 5

4шт.

6

87693195

CONTROL UNIT

REXROTH RC2-2

1шт.

7

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

8

118780A1

KNOB

Console Control

1шт.

9

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

10

87388415

SWITCH

NRG, on-none-off

1шт.

11

BN325000

SWITCH

rocker, main power

1шт.

12

BN325825

SPACER

Switch

5шт.

13

BN321916

SWITCH

Sparge Pressure

1шт.

14

BN321914

SWITCH

Boom Height

1шт.

15

BN321915

SWITCH

Boom Fold RH

1шт.

16

BN321913

SWITCH

boom fold LH

1шт.

17

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

18

282056A1

PLUG

double d

1шт.

19

BN322626

PLUG

Panel, NGR

9шт.

20

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

22

BN69601

SCREW,#10 x 1"

#10 X 1 FL HD

4шт.

23

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 X 35 PHD H 4.8

2шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

26

353308

NUT,M6 x 1.0, Cl 8

2шт.

27

87707038

FUSE/RELAY

1шт.
