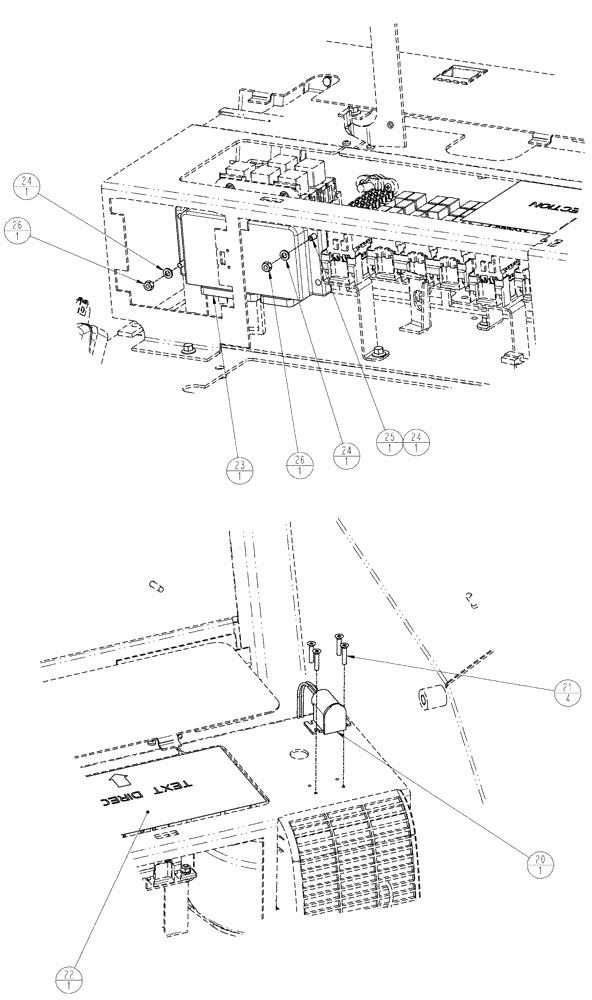

Запчасти Case IH SPX3320 (01-033) - PACKAGE, ELECTRICAL RH, CONSOLE - BEGIN YEAR 01/2009 Cab Interior

1

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

2

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 X 35 PHD H 4.8

2шт.

3

BN323495

ADAPTER

Reverse

1шт.

4

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

5

87492830

PLATE

Prop Switch Mount

2шт.

6

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

7

BN322626

PLUG

Panel, NGR

9шт.

8

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

9

118780A1

KNOB

Console Control

1шт.

10

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

11

282056A1

PLUG

double d

1шт.

12

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

13

87388415

SWITCH

NRG, on-none-off

1шт.

14

BN325000

SWITCH

rocker, main power

1шт.

15

BN325825

SPACER

Switch

5шт.

16

BN321916

SWITCH

Sparge Pressure

1шт.

17

BN321914

SWITCH

Boom Height

1шт.

18

BN321915

SWITCH

Boom Fold RH

1шт.

19

BN321913

SWITCH

boom fold LH

1шт.

20

BN67965

POWER SOCKET

ASSY, POWER OUTLET W/END

1шт.

21

BN69601

SCREW,#10 x 1"

#10 X 1 FL HD CTSK BK

14шт.

22

87707038

DECAL FUSE/RELAY, 3320

1шт.

23

87693195

CONTROL UNIT

REXROTH RC2-2

1шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

26

353308

NUT,M6 x 1.0, Cl 8

2шт.

27

BN307971

SEALANT

thread

1шт.

28

BN1243001

LOCTITE

243-31 Removable

1шт.

29

87610586

WIRE HARNESS

RH Console, Hydraulic

1шт.
