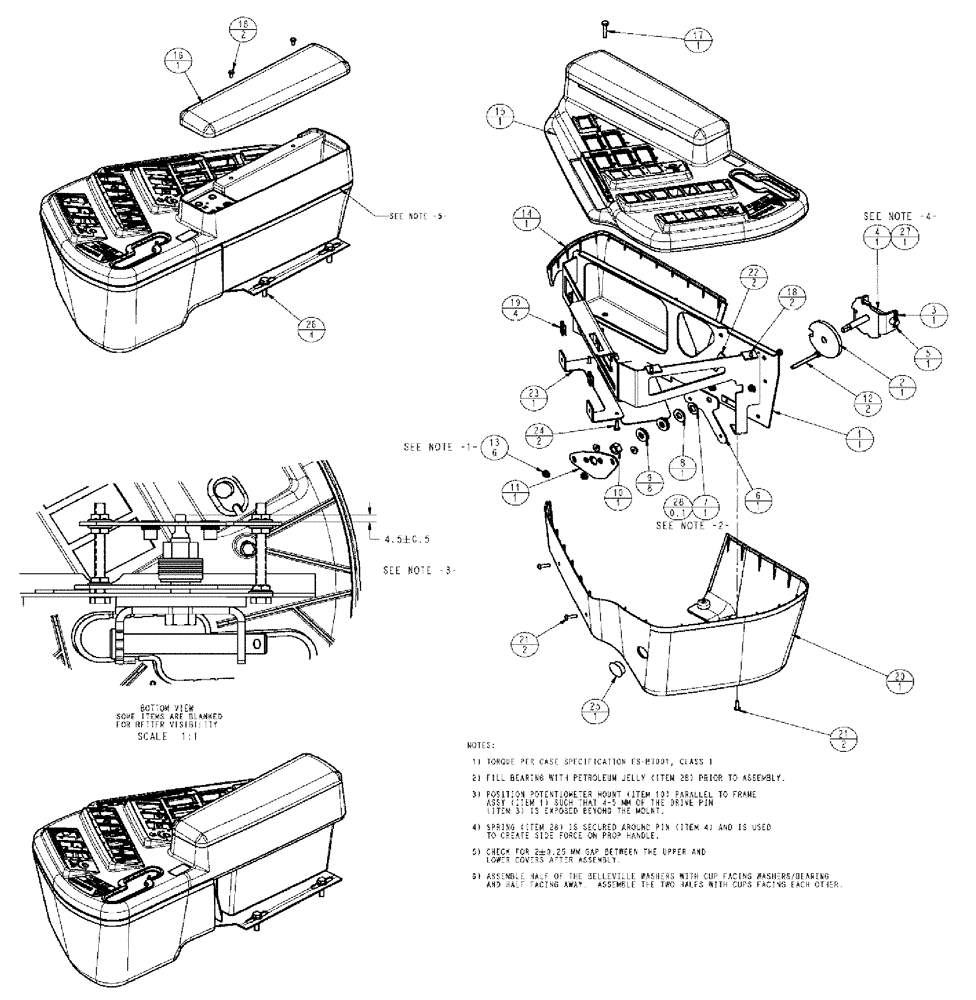

Запчасти Case IH SPX3320 (01-032) - RH CONSOLE SUB ASSEMBLY - END YEAR 01/2009 Cab Interior

1

87270591

FRAME

ASM, RH CONSOLE

1шт.

2

251090A1

THRUST WASHER

wear

1шт.

3

87578140

SUPPORT

Prop Lever Control

1шт.

87578136

PIN

DRIVE

1шт.

Associated Part of Support, Prop Lvr Control, P/N 87578140

1шт.

BN318899

PLATE

CAM PLATE, PROP CONTROL

1шт.

Associated Part of Support, Prop Lvr Control, P/N 87578140

1шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

5

80755

COTTER PIN,1/8" OD x 1" L

1шт.

6

87563477

SPACER

Mount, Propel Handle

1шт.

7

159688R91

THRUST BEARING

1шт.

8

87529248

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469 x 1 x 0.105 HTS DOR HDN

1шт.

9

1994980C1

BELLEVILLE WASHER

Belleville, M10

8шт.

10

BN318707

MOUNTING PLATE

POTENTOIMETER

1шт.

11

87342146

BOLT,Hex, M6 x 60mm, Cl 8.8

Hex, M6 x 60 Full Thd, CL8.8 DOR

2шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

6шт.

13

130412A1

COVER

skirt, console, rear

1шт.

14

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-039

1шт.

15

128970A3

ARMREST

assembly, console

1шт.

16

87342145

BOLT,Hex, M6 x 30mm, Cl 8.8

Hex, M6 x 30 Full Thd CL8.8 DOR

1шт.

17

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

18

87016567

SPRING NUT,Tinn, U, #10

4шт.

19

87270585

COVER

skirt, lower console

1шт.

20

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

4шт.

21

342938A1

PLATE

PRP switch backing

2шт.

22

87270759

PLATE

Blockoff, RH Console

1шт.

23

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

24

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

25

86981482

BOLT,Hvy Hex Flg, M8 x 30mm, Cl 8.8, Full Thd

M8X30 CL8.8 DOR

4шт.

27

128593A1

SPRING

torsion, propulsion handle

1шт.
