Запчасти Case IH SPX3320 (01-028) - SEAT ASSEMBLY, TRAINING Cab Interior

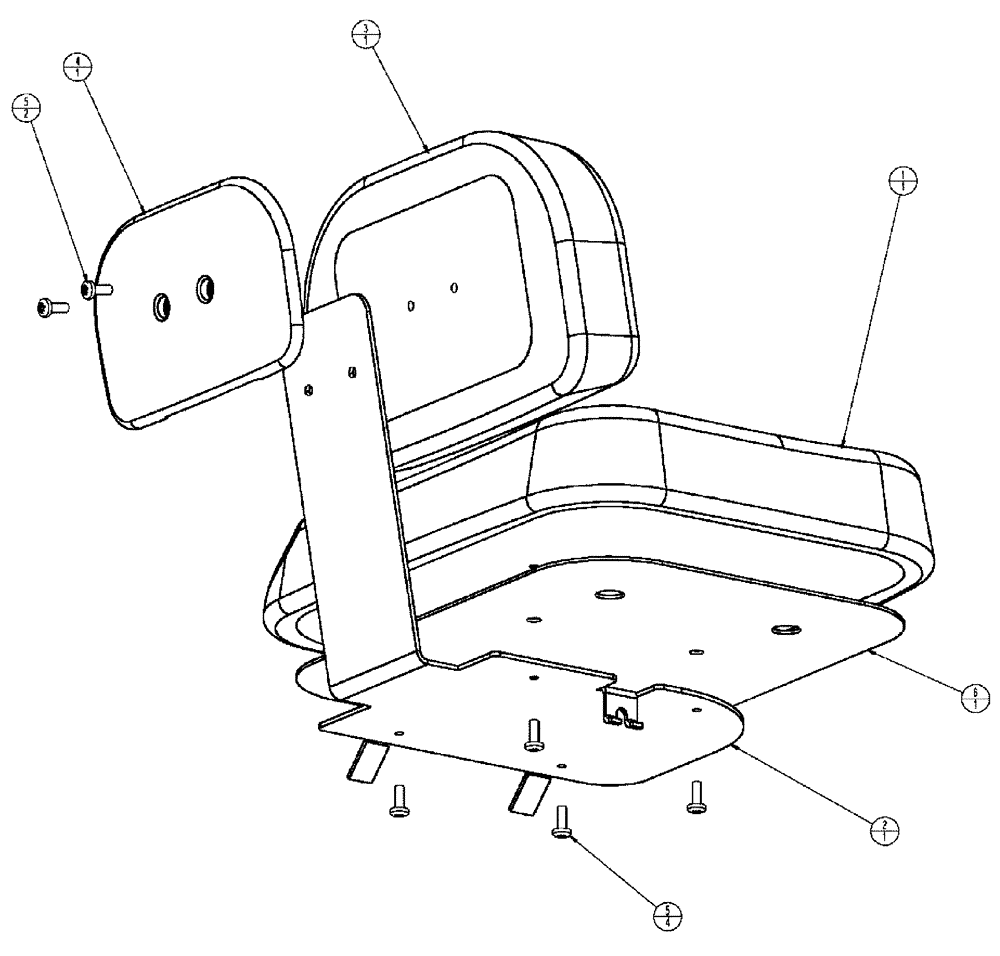

Схема запчастей Case IH SPX3320 - (01-028) - SEAT ASSEMBLY, TRAINING Cab Interior
1
2
3
5
4
5
6

Артикул

Название

Примечание

Количество

1

359030A2

SEAT COVER

deluxe, training

1шт.

2

296316A3

SUPPORT

bracket, passenger seat

1шт.

3

359031A2

BACKREST COVER

deluxe, training

1шт.

4

359029A1

COVER

training back rest

1шт.

5

86585758

SCREW,Pan HD, M6 x 16mm, Cl 4.8

6шт.

6

381940A1

PANEL

seat cover, wheat

1шт.

Выбрано товаров: 6
