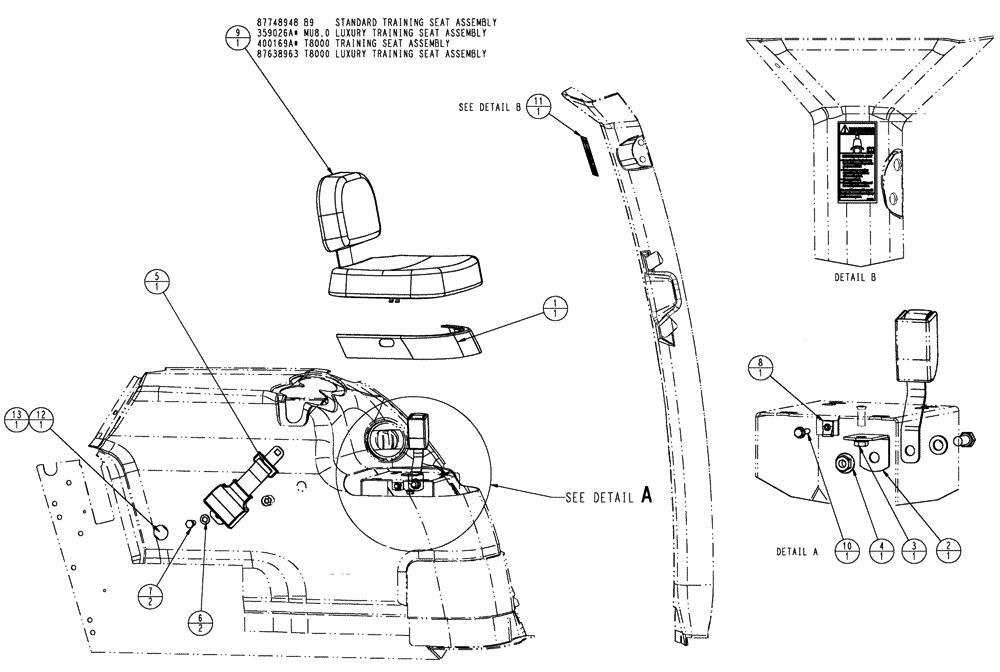

Запчасти Case IH SPX3320 (01-027) - TRAINER SEAT Cab Interior

1

INF10467

BEZEL ASSY, INSTRUCTIONAL SEAT

1шт.

296317A3

BEZEL

ASSY, INSTRUCTIONAL SEAT, DAWN GRAY

1шт.

Service Parts for Ref. 1

1шт.

359039A1

BEZEL

Assy, instructional seat, wheat

1шт.

Service Parts for Ref. 1

1шт.

400132A1

BEZEL

ASSY, INSTRUCTIONAL SEAT, SLATE GRAY

1шт.

Service Parts for Ref. 1

1шт.

87674247

BEZEL

ASSY, INSTRUCTIONAL SEAT, NH GRAY

1шт.

Service Parts for Ref. 1

1шт.

2

309099A1

BRACKET

1шт.

3

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

4

43436

FLANGE NUT,M12

1шт.

5

224808A1

SAFETY BELT ,48mm W x 1219mm L

1шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

8

833-40305

SPRING NUT,M5, U

1шт.

9

359026A2

SEAT

Assembly, Premium, Training

1шт.

10

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

11

410704A1

WARNING DECAL

Instructional Seat

1шт.

12

376597A2

DECAL

hole

1шт.

13

401529A1

DECAL

HOLE COVER

1шт.
