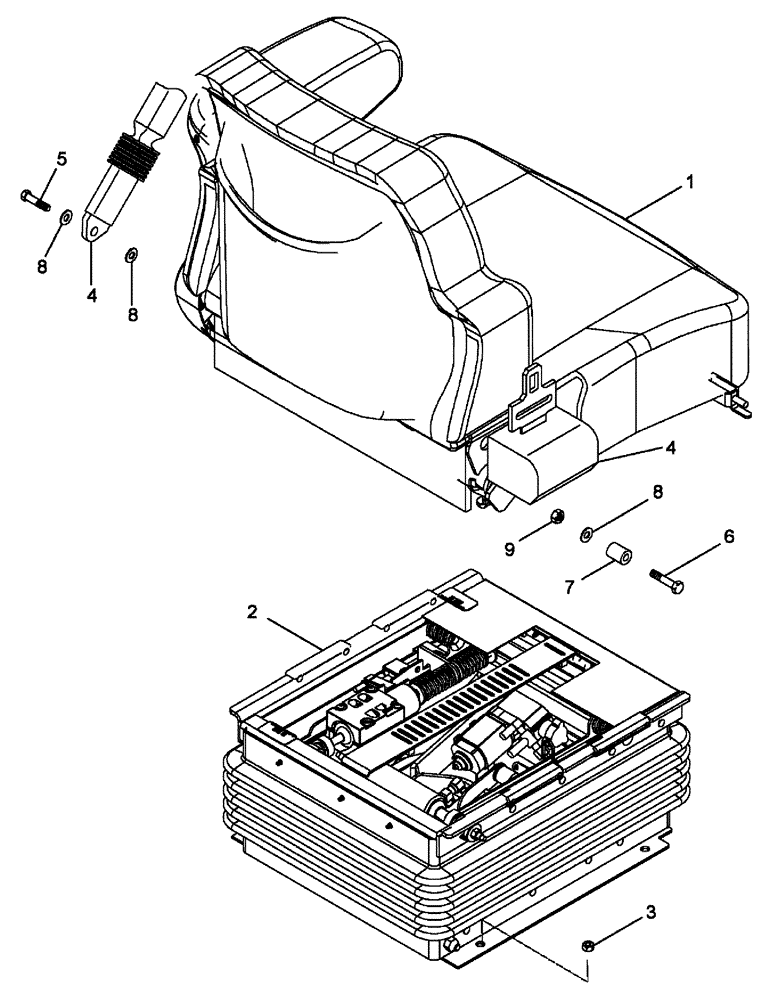

Запчасти Case IH SPX3320 (01-024) - SEAT, PACKAGE Cab Interior

1

NSS

NOT SOLD SEPARAT

SEAT ASSY, CASE-IH STANDARD

1шт.

See Fig. 01-025

1шт.

2

87395380

SUSPENSION

Without Positive Reponse

1шт.

See Fig. 01-026

1шт.

4

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

5

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

87313413

TUBE SPACER

.875 x .5

1шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

86639232

NUT,Weld, M10

1шт.
