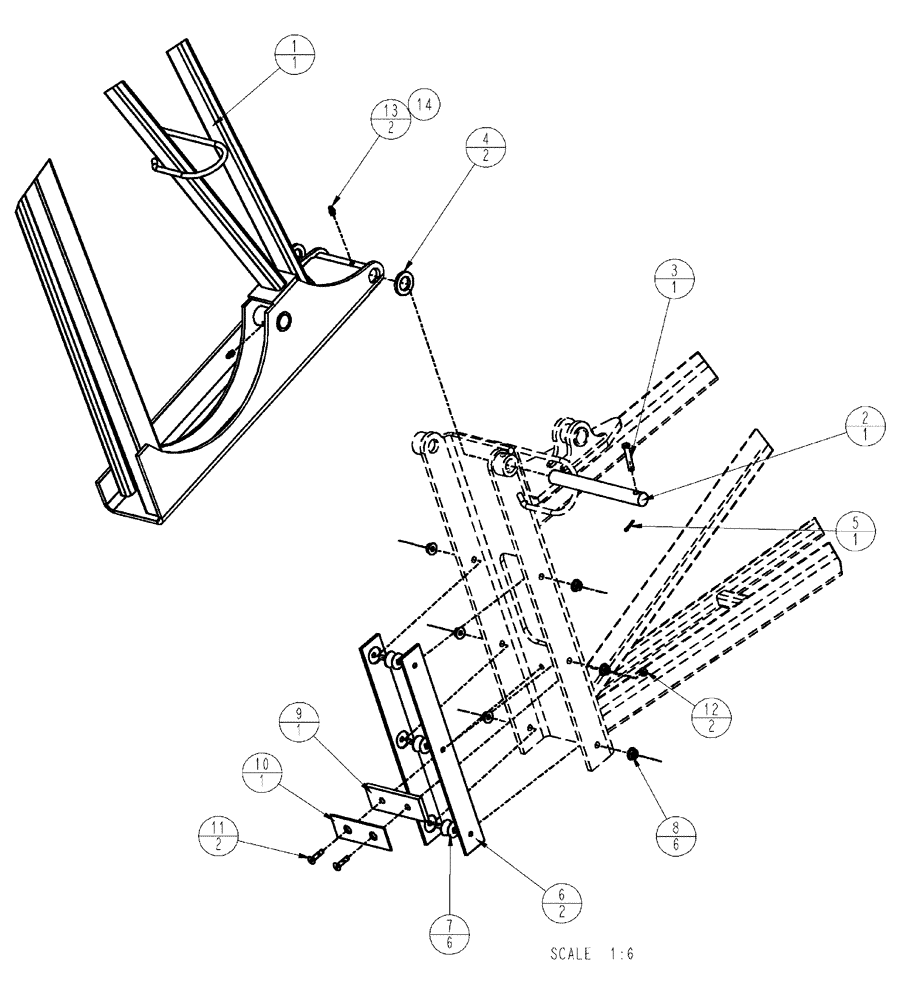

Запчасти Case IH SPX3320 (08-029) - OUTER BOOM ASSEMBLY, LH, 90’, BEGINNING 11/2008 (09) - BOOMS

1

87683496

BOOM

Outer, LH, 90'/100'

1шт.

2

BN307893

PIN,25.4mm OD x 236.47mm L

V-FOLD

1шт.

3

87344036

PIN,9.53mm OD x 54.36mm L

Headed, 3/8 x 1 55/64", G5

1шт.

4

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

2шт.

5

80755

COTTER PIN,1/8" OD x 1" L

1шт.

6

BN69856

PLATE

LINER-PLSTIC

2шт.

7

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

6шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

6шт.

9

BN305437

BUMPER

RUBBER, 2 X 5.5 X .38

1шт.

10

87266608

STEEL PLATE

FOLD BUMPER

1шт.

11

280591

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1 1/4"

2шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

13

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

14

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.
