Запчасти Case IH SPX3320 (08-018[02]) - BOOM BREAKAWAY ASSEMBLY - 80 (09) - BOOMS

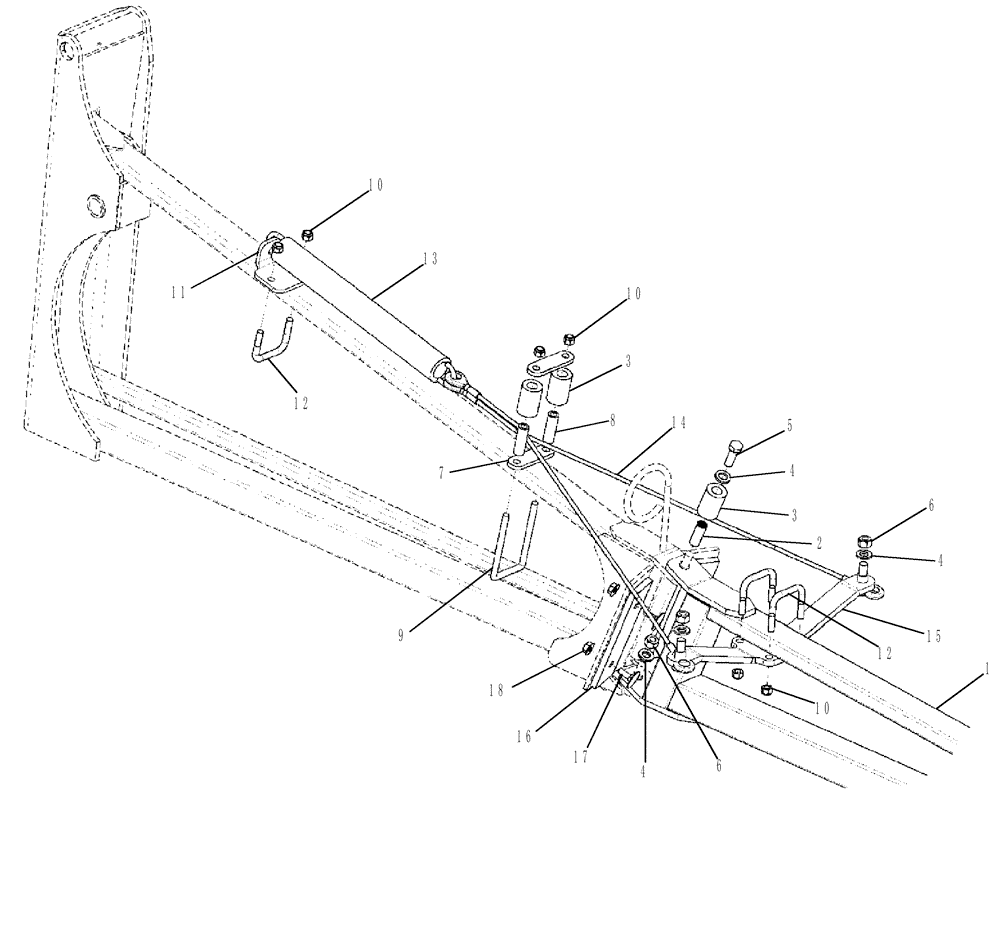

Схема запчастей Case IH SPX3320 - (08-018[02]) - BOOM BREAKAWAY ASSEMBLY - 80 (09) - BOOMS
3
17
1
10
4
2
14
3
6
4
9
16
10
8
7
13
11
5
12
4
10
15
18
12
6

Артикул

Название

Примечание

Количество

1

BN325289

FRAME

Boom, Breakaway

1шт.

2

BN304675

NUT

RND CONNECT, M12 X 40

1шт.

3

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

3шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

5

87342014

BOLT,M12 x 1.75 x 35mm, Class 10.9

M12X35 CL10.9

1шт.

6

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

3шт.

7

BN308039

PLATE

Spacer

2шт.

8

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

2шт.

9

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

1шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

11

84217032

PLATE

Spring

1шт.

12

BN68062

U-BOLT

BOLT "U" 3/8-SQ BND-2.06 ID

3шт.

13

BN305410

SPRING

1.67 X 0.283 X 12

1шт.

14

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

15

BN309505

ANGLE

BREAKAWAY

1шт.

16

BN312172

BUMPER

BREAKAWAY

2шт.

17

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

18

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

19

BN570007

STRAP

2шт.

Выбрано товаров: 19
