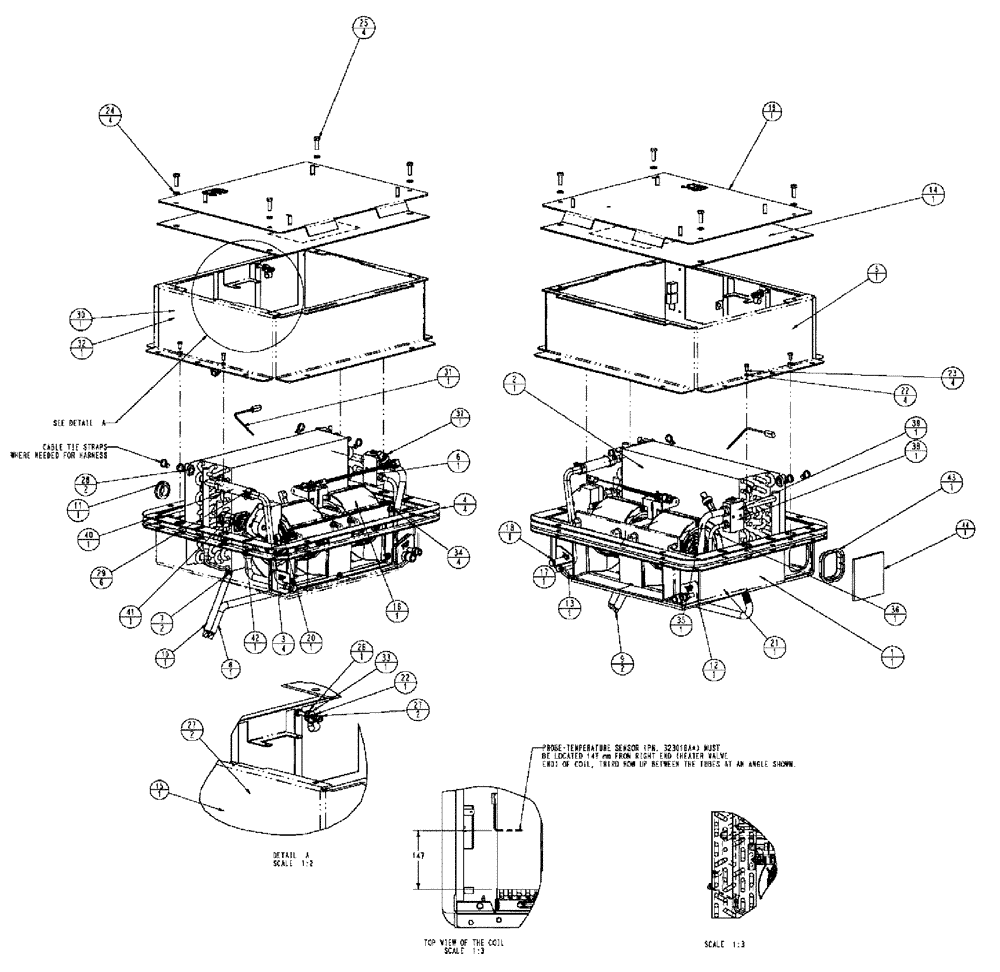

Запчасти Case IH SPX3320 (01-014) - HVAC UNIT, MANUAL Cab Interior

1

322996A1

BOX

evaporator

1шт.

2

86990262

CORE

Evaporator And Heater

1шт.

3

322994A1

GASKET,3mm Thk

flange seal

4шт.

4

322995A1

GASKET,3mm Thk

flange seal

4шт.

5

87454443

CASE ASSY.

Top, HVAC

1шт.

6

87033212

VALVE

thermal expansion HFC-134A

1шт.

7

1250522C3

FITTING

fitting, drain

2шт.

8

87574393

HOSE,12.95 mm ID x 1055.00 mm

Condensate

1шт.

9

109239C2

CHECK VALVE

Drain

2шт.

10

1977334C1

HOSE

Cut From: 198091C1, 610 mm (24 1/8")

1шт.

11

86637781

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

bulkhead, A/C

1шт.

13

322990A1

GROMMET

bulkhead, heater

1шт.

14

87324951

GASKET,3mm Thk

Top Cover, HVAC

1шт.

15

87429903

CONTROL UNIT

module, climate

1шт.

16

323611A1

BLOWER

cab, 12V with resistor

1шт.

16

84222526R

REMAN-BLOWER

SPX3320 PATRIOT SPRAYER, cab, 12V with resistor (11/06-4/09), Reman for New PN 323611A1

1шт.

16

84222526C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

heater outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

heater inlet

1шт.

19

87306495

COVER

Top HVAC

1шт.

20

427356A1

CONTROL VALVE

Assembly, Heater

1шт.

See Fig. 01-013

1шт.

21

324484A1

INSULATOR

HVAC, bottom

1шт.

22

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

5шт.

23

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

4шт.

24

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

25

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

26

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

27

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

28

86637777

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

29

1954736C1

HOSE CLAMP,#24

6шт.

30

105849A1

RELAY

20 amp

1шт.

31

323016A1

SENSOR

thermistor

1шт.

32

87564078

WIRE HARNESS

1шт.

33

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

34

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

35

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

A/C suction

1шт.

36

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

A/C liquid

1шт.

37

87323829

SWITCH, A/C LOW PRES

1шт.

38

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

39

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

40

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut from 97252CX

1шт.

41

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Supply, Cut from : 97252CX

1шт.

42

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Supply, Cut from : 97252CX

1шт.

43

368313A1

PLASTIC PLUG

HVAC

1шт.

44

87306773

FOAM INSULATION

Foil Side

1шт.

327306A1

GASKET

evaporator sealing

1шт.

Associated Part of Gasket, Evaporator Sealing, P/N 87306773

1шт.
