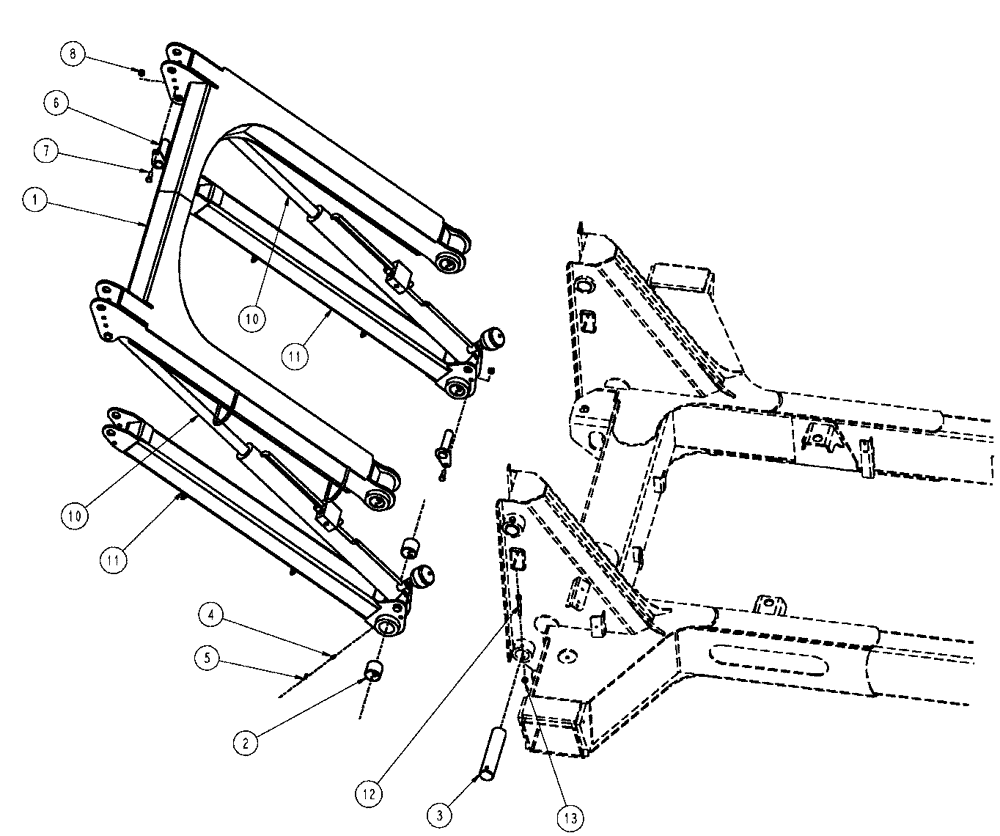

Запчасти Case IH SPX3320 (08-006) - LINKAGE GROUP, BOOMS (09) - BOOMS

1

87267188

UPPER LINK

1шт.

2

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

SPRING

8шт.

3

87267199

PIN

Parallel-Links

4шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

4шт.

5

BN69951

CAP

Grease

4шт.

6

87271475

PIN

Linkage

4шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

10

NS

NOT SERVICED

Cylinder Group, Para-Links

2шт.

See Fig. 07-012

1шт.

11

87270799

LINK

LOWER LINK WA

2шт.

12

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.
