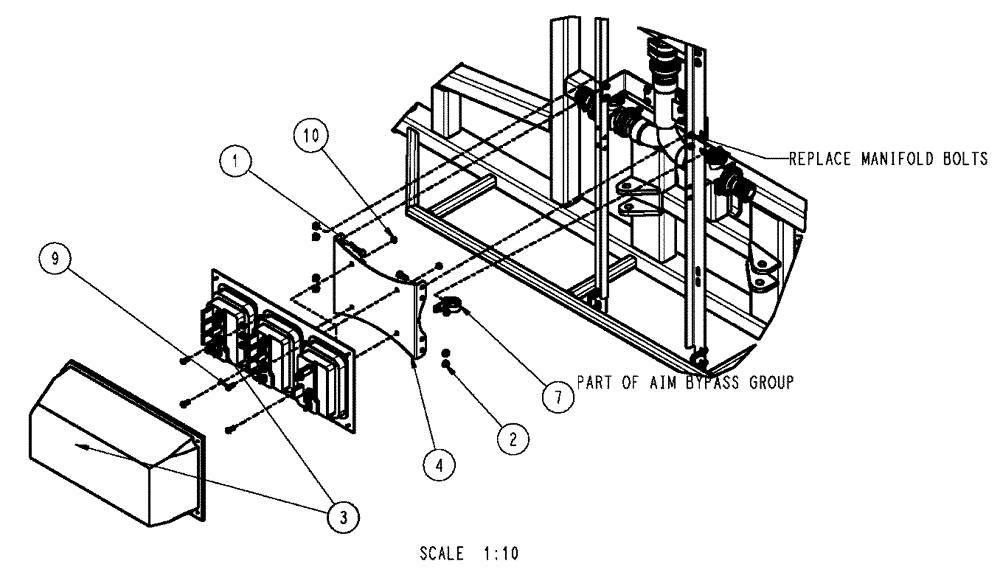

Запчасти Case IH SPX3320 (12-031) - AIM COMMAND, ELECTRICAL GROUP, 6 SEC (06) - ELECTRICAL

1

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

2

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

3

87397541

CONVERSION KIT

AIM, CMD, PWM 1-6 SEC, SEE FIG. 12-040

1шт.

4

87271089

BRACKET, SUPPORTING

AIM CMD, Rear

1шт.

5

87271225

CAB, ELECTRICAL, SEE FIG. 12-036

1шт.

6

87272273

SENSOR

Harness Assembly, AIM Command

1шт.

87271580

SENSOR

pressure aim command

1шт.

Associated Part of Sensor, Harness Assy, P/N 87272273

1шт.

7

87271226

AIM, CMD BYPASS, SEE FIG. 12-034

1шт.

8

87271230

AIM, CMD 6 HARNESS, SEE FIG. 12-037

1шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

9991588

NUT,M8 x 1.25, Cl 8

4шт.
