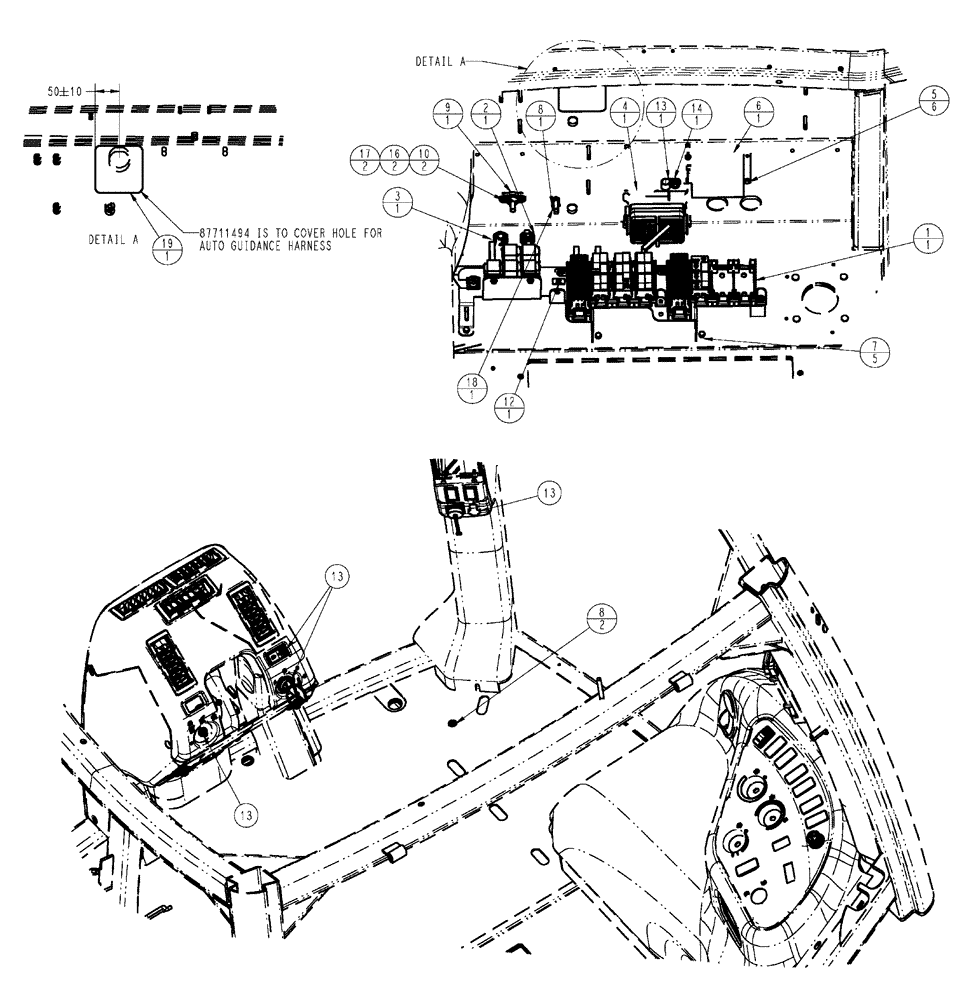

Запчасти Case IH SPX3320 (01-009) - PACKAGE, ELECTRICAL GROUP, CAB Cab Interior

1

87611371

MODULE

ELECT MAIN CAB SEE FIG. 12-004

1шт.

2

A187523

JUNCTION BLOCK

ASSY

1шт.

3

311430A1

BLOCK

junction assembly

1шт.

4

437550A1

FLANGE

DEUTSCH INTERFACE

1шт.

5

87016555

SELF-TAP SCREW,Hex, M4.8 x 1.6 x 19mm

6шт.

6

84150025

MODULE

flasher interface

1шт.

7

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

5шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

20-1451T1

BLOCK

Junction

1шт.

10

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

11

87271584

PACKAGE, ELECTRICAL GRP, CAB SEE FIG. 01-012

1шт.

12

87394246

DECAL

GRN TEST POINT

1шт.

13

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

15

BN54029

DOOR SEAL

CLIP ON RUBBER-BULK

1шт.

16

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

17

86508813

NUT,M5, Cl 8

2шт.

18

9706690

NUT,M8 x 1.25, Cl 8

2шт.

19

87711494

DECAL

COVER, BLACK

1шт.
