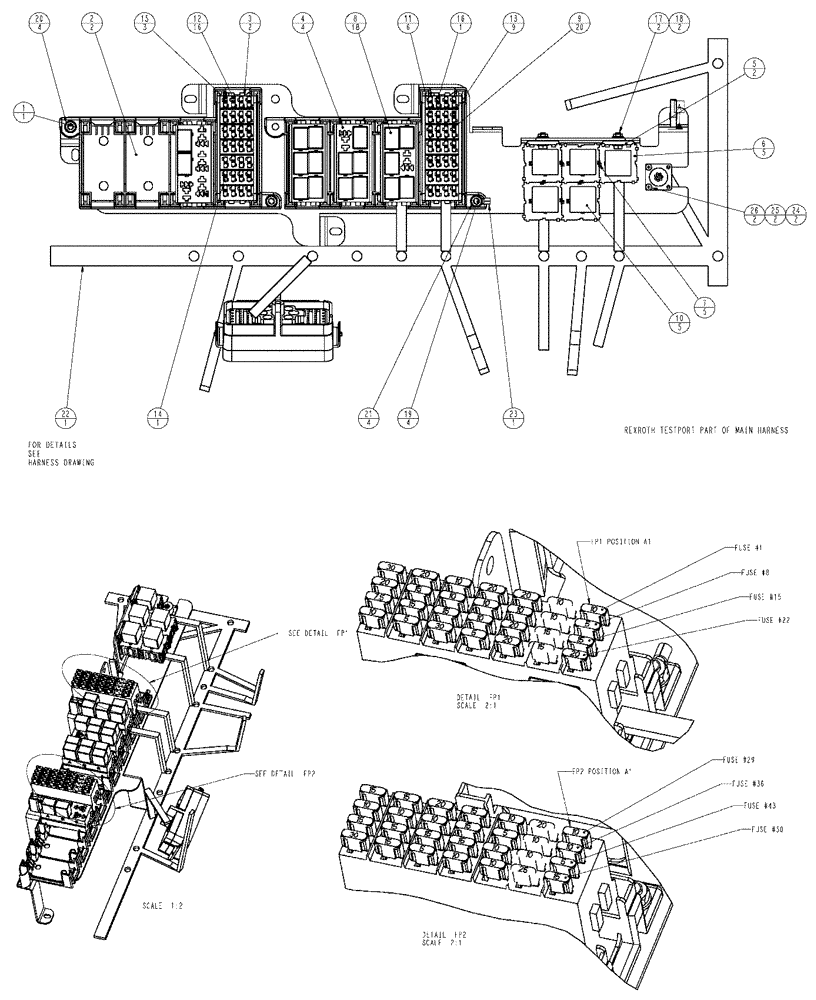

Запчасти Case IH SPX3320 (12-004) - MODULE, ELECTRICAL MAIN CAB (06) - ELECTRICAL

1

87517377

BRACKET

MOUNTING, ELEC

1шт.

2

191135A1

BASE

Packard P/N 12110041

2шт.

3

144421A1

CONNECTING BLOCK

Module, Packard 28-Way Minifuse

2шт.

4

144417A1

CONNECTING BLOCK

Module, Packard 6-Way Micro Relay

4шт.

5

367147A1

BRACKET

mounting (Dill #59205)

2шт.

7

367145A1

ELEC CONNECTOR,Female, 4 Pin

grey terminal (Dill #59184)

5шт.

8

105849A1

RELAY

20 amp

18шт.

9

121412A1

FUSE,10A, Mini, Red

18шт.

10

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

5шт.

11

121410A1

FUSE,5A, Mini, Tan

6шт.

12

121413A1

FUSE,15A, Mini, Blue

15шт.

13

121414A1

FUSE,20A, Mini, Yellow

9шт.

14

121415A1

FUSE,25A, Mini, Clear

1шт.

15

121416A1

FUSE,30A, Mini, Green

4шт.

16

121411A1

FUSE,7.5A, Mini, Brown

1шт.

17

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

2шт.

18

825-5145

NUT,M5, Flg Ser

2шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

22

87611348

WIRE HARNESS

ELECTRICAL, MAIN CAB, SEE FIG. 12-005

1шт.

23

367146A1

WEDGE

lock, red (Dill #59011)

5шт.

25

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

26

86508812

NUT,M3, Cl 8

2шт.

27

887389403

BELLEVILLE

2шт.
