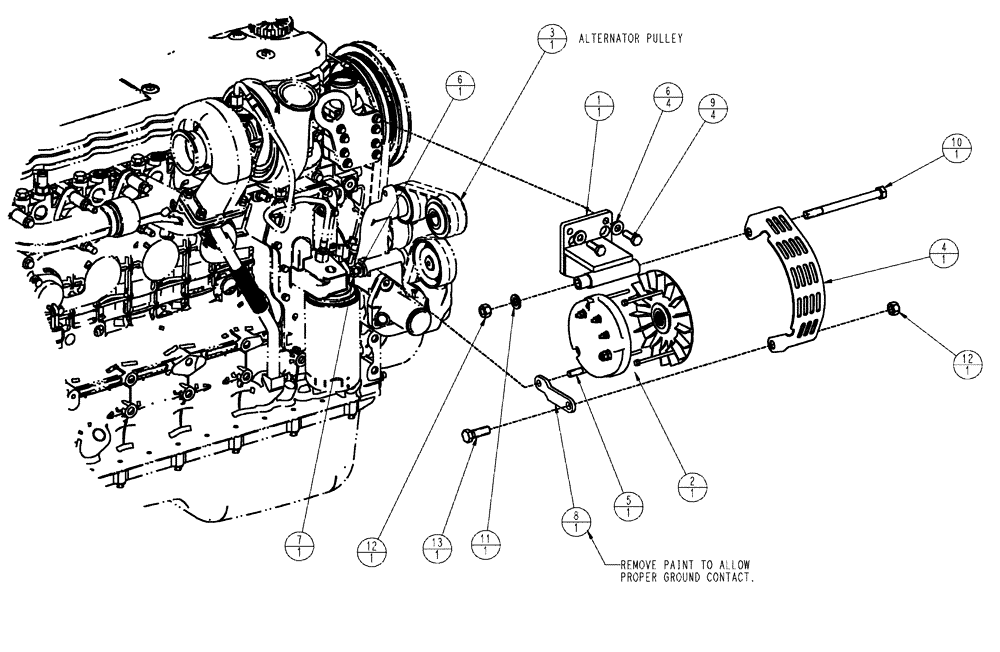

Запчасти Case IH SPX3320 (03-055) - ALTERNATOR GROUP (01) - ENGINE

1

87270954

MOUNTING PLATE

Alternator

1шт.

2

87645567

ALTERNATOR

175A 14V

1шт.

2

87645567R

REMAN-ALTERNATOR

175A

1шт.

2

87645567C

CORE-ALTERNATOR

Return Number

1шт.

3

J965146

ALTERNATOR

1шт.

87452704 Can be used per engineering, but has a keyway

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

5шт.

5

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

1шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

5шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

8

87271080

SUPPORT

ALTERNATOR

1шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

10

87342824

BOLT

1/2-13 X 6 5 DOR

1шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

12

87343666

NUT

Hex, 1/2"-13, G5

2шт.

13

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

1шт.
