Запчасти Case IH SPX3320 (03-039) - FUEL INJECTION PUMP (01) - ENGINE

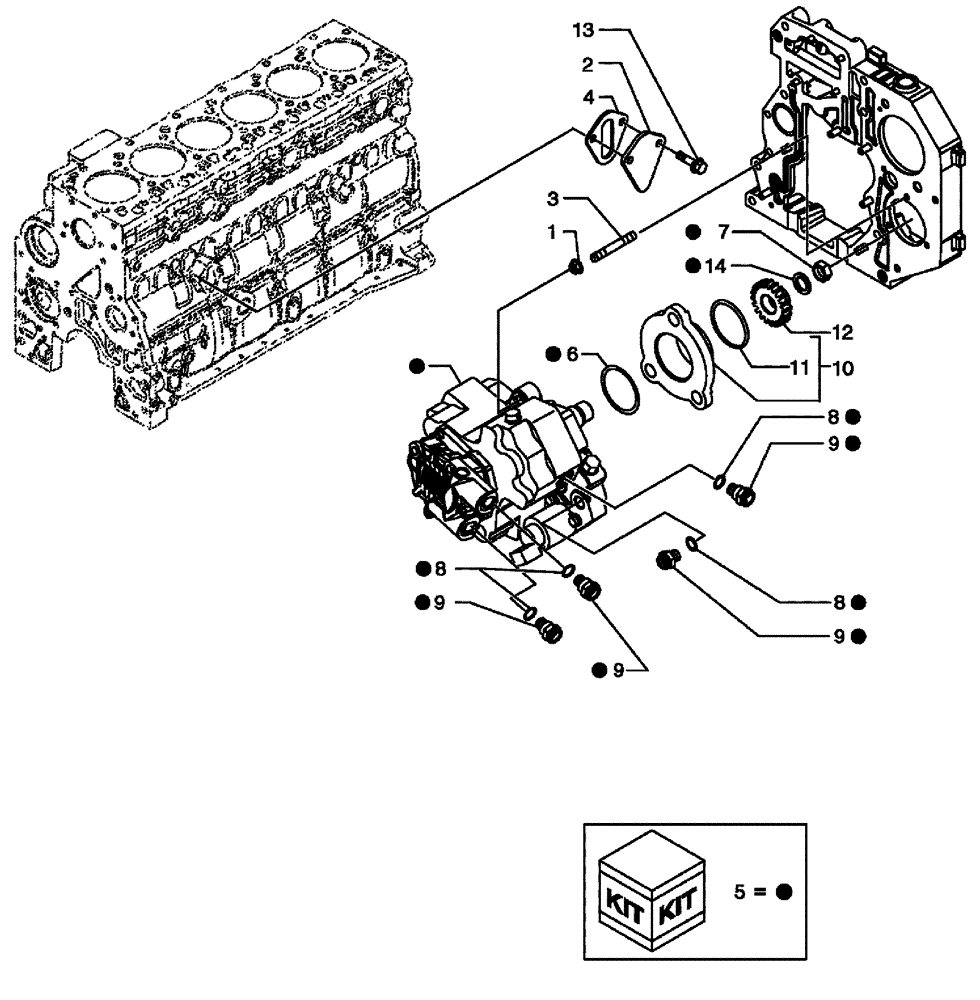

Схема запчастей Case IH SPX3320 - (03-039) - FUEL INJECTION PUMP (01) - ENGINE
9
9
6
11
5
9
14
3
8
13
4
12
8
8
7
10
2
9
1

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 X 1.25 X 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

1шт.

84385110R

REMAN-INJECTION PUMP

SPX3320 PATRIOT SPRAYER (11/06-4/09), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

5

4898921R

REMAN-INJECTION PUMP

SPX3320 (11/06-4/09)

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

5a

42541851

SOLENOID

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 X 1.5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

HYD.

4шт.

10

2852804

HUB

adapter, fuel pump

1шт.

Includes Ref. 11

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

1шт.

13

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

14

4890635

SPRING WASHER

1шт.

Выбрано товаров: 20
