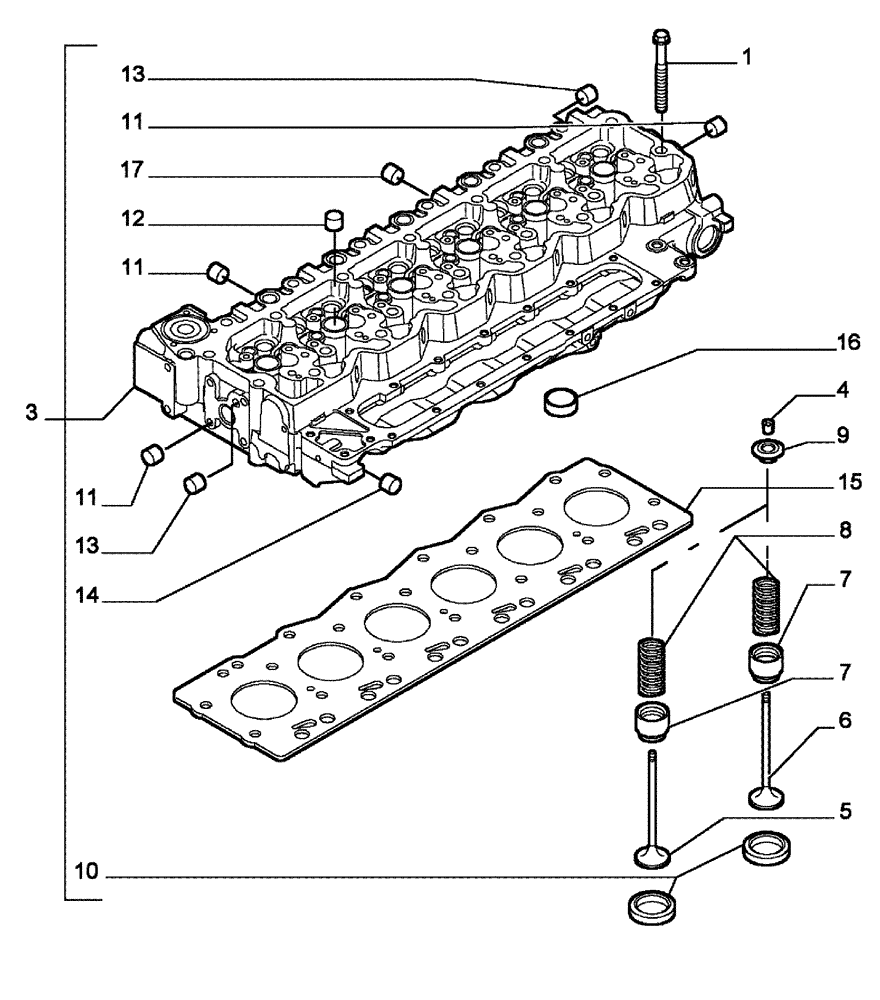

Запчасти Case IH SPX3320 (03-025) - CYLINDER HEAD (01) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

Hex Flange Hd Cap, M12 x 130

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

14шт.

3

2831279

CYLINDER HEAD,6 Cylinders

1шт.

2831279C

CORE-CYLINDER HEAD

Return Number, For N.A. Only

1шт.

87536188

CYLINDER HEAD

Kit, 6 CYL 4V-T2 and T3

1шт.

87536188R

REMAN-CYLINDER HEAD

SPX3320 (11/06-4/09)

1шт.

87536188C

CORE-CYLINDER HEAD

Return Number

1шт.

2831274

CYLINDER HEAD,6 Cylinders

Assembly, Inc Ref 3, 4, 5, 6, 7, 8, 9, 10

1шт.

2831274R

REMAN-CYLINDER HEAD

SPX3320 (11/06-4/09)

1шт.

2831274C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

24шт.

11

4895085

EXPANSION PLUG,25.74mm

13шт.

11

4895408

PLUG,0.511" L

2шт.

12

4895089

PLUG,0.886" L

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

2шт.

15

87478869

GASKET KIT

Inc Head Gasket

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

SP 1.25

1шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

SP 1.15

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

17

4895408

PLUG,0.511" L

2шт.
