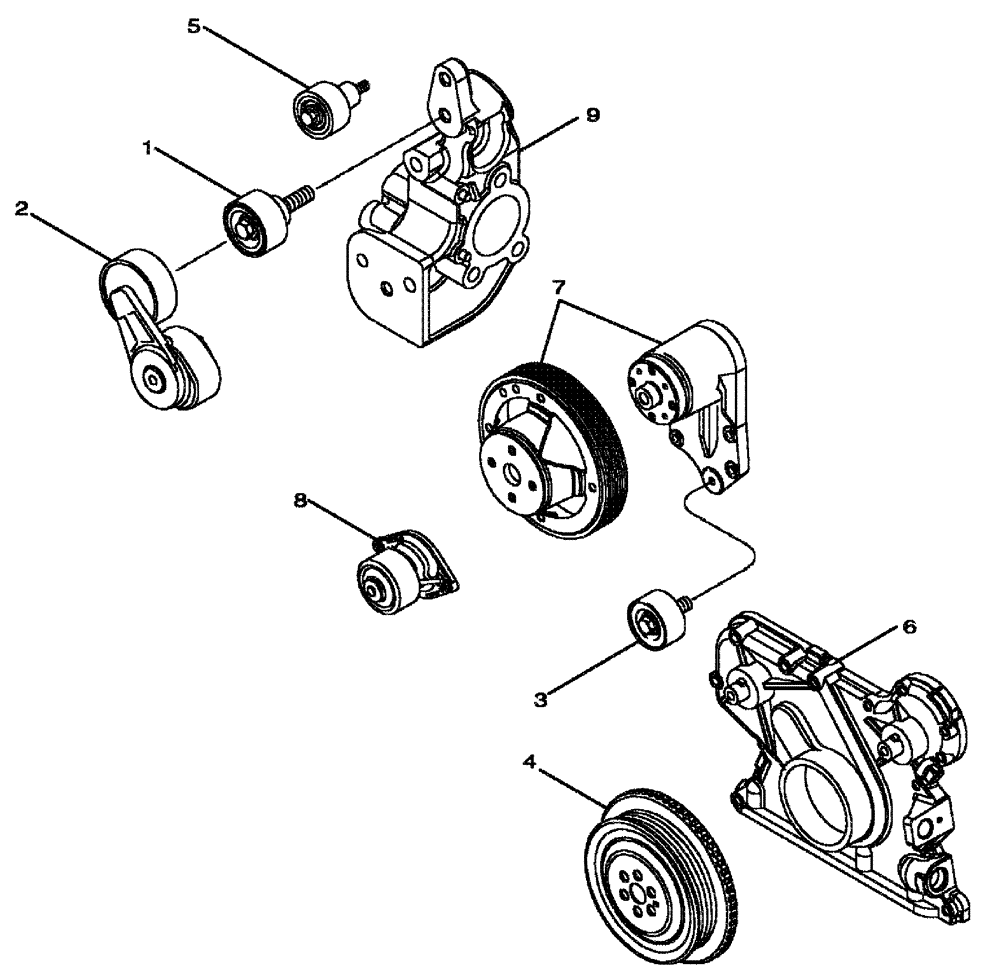

Запчасти Case IH SPX3320 (03-015) - WATER PUMP - CONTROL (01) - ENGINE

1

2852398

IDLER WHEEL,65mm OD

PULLEY

1шт.

2

2856173

BELT TENSIONER

1шт.

2

2852396

BELT TENSIONER

1шт.

3

2852397

IDLER,65mm OD

ROLLER, SHIFTER

1шт.

4

4896773

PULLEY

Crankshaft

1шт.

See Fig. 03-015

1шт.

5

2852245

PULLEY,65mm OD

IDLER

1шт.

6

4897026

COVER

Front Gear

1шт.

7

REF

INSTRUCTION

SPARE PART, FAN DRIVE

1шт.

See Fig. 03-004

1шт.

8

2853443

WATER PUMP

Assembly, With 70mm OD Pully Used On Units With Build Date Before 6/1/09

1шт.

2853443R

REMAN-WATER PUMP

SPX3320 (11/06-4/09)

1шт.

2853443C

CORE-WATER PUMP

Return number

1шт.

8

2854835

WATER PUMP

Assembly, With 78mm OD Pulley, Used On Units With Build Date 6/1/09 And After

1шт.

See Fig. 03-014

1шт.

2854835R

REMAN-WATER PUMP

SPX3320 (11/06-4/09)

1шт.

2854835C

CORE-WATER PUMP

Return Number

1шт.

9

2852392

SUPPORT

water inlet

1шт.

See Fig. 03-034

1шт.
