Запчасти Case IH SPX3320 (01-004[02]) - CAB TRIM, W/O CD Cab Interior

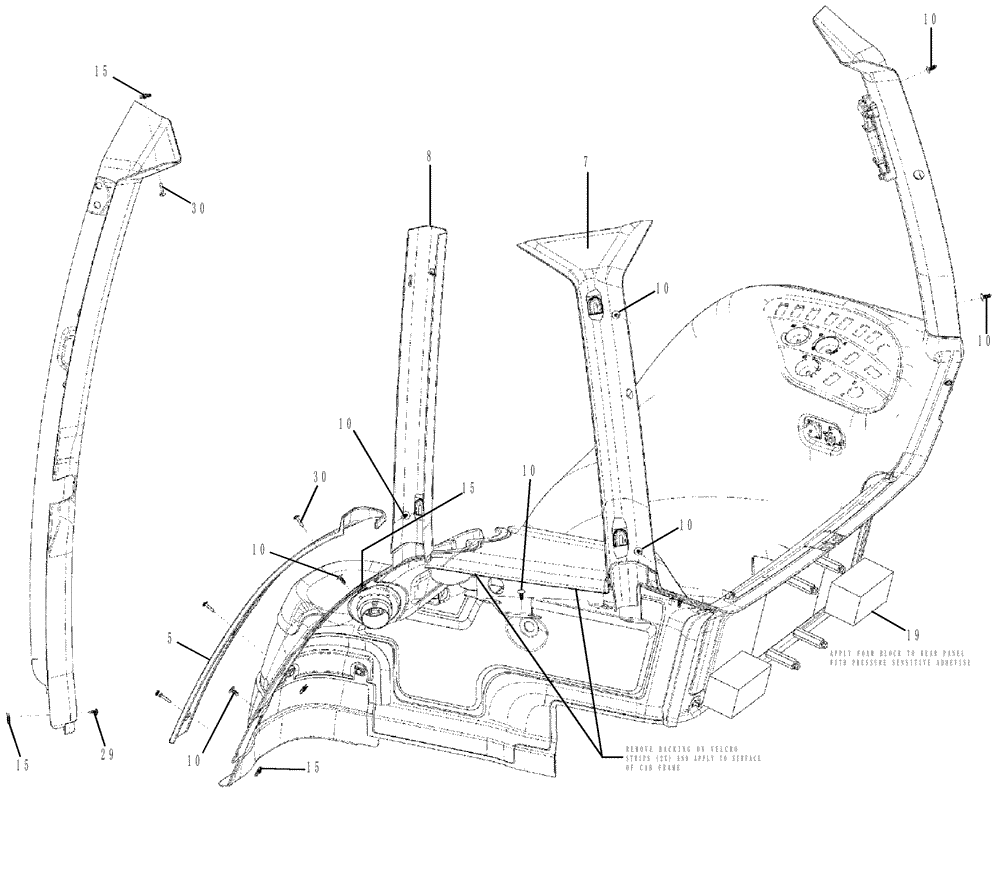

Схема запчастей Case IH SPX3320 - (01-004[02]) - CAB TRIM, W/O CD Cab Interior
with pressure sensitive adhevise
10
of cab frame
10
10
30
10
30
10
10
7
15
15
29
15
10
10
15
8
apply foam block to rear panel
5
19
strips (2x) and apply to surface
remove backing on velcro

Артикул

Название

Примечание

Количество

1

302456A1

ASH TRAY

1шт.

2

428192A2

BEZEL

RH FENDER, TRIM CONNECTORS

1шт.

3

87679383

BRACKET

PAINTED, CD, CUP HOLDER MOUNTING

1шт.

4

405011A3

BRACKET

HVAC PANEL SUPPORT

1шт.

5

87417629

TRIM PANEL

LH FENDER CLOSE-OUT STRIP

1шт.

6

87417632

TRIM PANEL

COVER, LH A-POST

1шт.

7

355099A1

TRIM PANEL

COVER, LH C-POST

1шт.

8

355100A1

COVER

LH B-POST

1шт.

9

322072A2

FASTENER

PLASTIC EXPANSION

2шт.

10

93199C1

FASTENER

RATCHET

15шт.

11

87413139

HANDLE

LH A-POST, GRAB

1шт.

12

3234176R1

COAT HOOK

1шт.

13

359037A1

HOOK

CARGO NET

4шт.

14

301901A1

INSERT

CUP HOLDER

1шт.

15

131-839

SPRING NUT,U, #10-16, Panel type

6шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

17

177269A1

SPRING NUT,M4.2

1шт.

18

322073A1

NUT

riv M6

2шт.

19

87313017

FOAM

PAD, REAR WALL TRIM, AUTO GUIDANCE

2шт.

20

87421503

FOAM

PAD, LH FENDER TRIM SUPPORT

1шт.

21

336383A1

PAD

FOAM, UPPER LEFT FENDER

1шт.

22

336384A1

PAD

FOAM, RIGHT A POST

1шт.

23

336385A1

PAD

FOAM, TRAINER SEAT

1шт.

24

87413140

PLUG

GRAB HANDLE

2шт.

25

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

8шт.

26

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

1шт.

27

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

28

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

2шт.

29

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

30

360362A1

CAPTIVE WASHER SCREW

10-16 x 1 wheat washer

6шт.

31

PL

PROCURE LOCALLY

SEALANT, UNISEAL 216 IH BL

6шт.

32

87309897

TRIM PANEL

LH BULLHORN TRIM COVER, WHEAT

1шт.

33

87309901

TRIM PANEL

RH BULLHORN TRIM COVER, WHEAT

1шт.

34

87417638

RUBBER STRIP

ENTRYWAY

1шт.

35

87309745

STUD

CARGO NET HOOK, UPPER

2шт.

36

322413A2

STUD

CARGO NET HOOK

2шт.

37

358805A1

HOLDER

CUP

1шт.

38

87444946

TRIM PANEL

RIGHT FENDER, NO LOUVER CUTOUT

1шт.

39

426575A1

TRIM PANEL

LH FENDER, WITHOUT CD BOX

1шт.

40

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

41

87532159

COVER

PLATE, AUTO GUIDANCE

1шт.

42

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

43

87313014

SPACER,M8 x 1.25

AUTO GUIDANCE

4шт.

44

84814892

WING NUT,M6 x 1.0

4шт.

45

87313020

TRIM PANEL

REAR WALL, CERES CONTROLLER AUTO GUIDANCE

1шт.

46

359036A1

NET,Cargo

REAR STORAGE CARGO NET

1шт.

Выбрано товаров: 46
