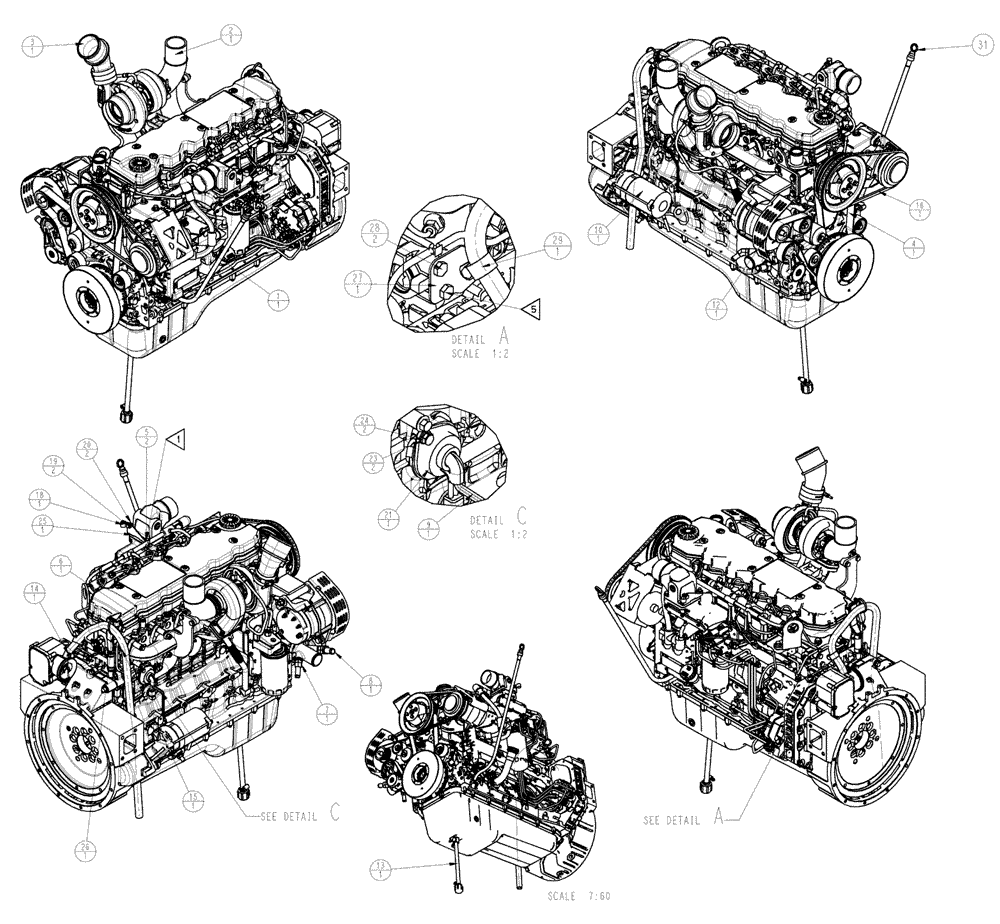

Запчасти Case IH SPX3320 (03-001) - ENGINE GROUP (01) - ENGINE

1

84159387

ENGINE

6 CYL 4V TAA NS 175KW, Start Year: 01-JUN-09

1шт.

See Fig. 03-002

1шт.

1

87421258

ENGINE

667TA/E3 NEF 175KW, Years: -01-JUN-09

1шт.

See Fig. 03-002

1шт.

1

504356569ER

REMAN-REPLACEMENT EN

SPX3320 (11/06-4/09), Reman for New PN 87421258

1шт.

1

504356569EC

CORE-EPA ENGINE

Return Number

1шт.

1

87421258R

ENGINE, EXCHANGE

SPX3320 (11/06-4/09)

1шт.

1

87421258C

CORE-ENGINE

Return Number

1шт.

1

87421258ER

REMAN-REPLACEMENT EN

SPX3320, 6 Cyl. 6.7L NEF, 4 Valve, Tier 3 (11/06 - 4/09)

1шт.

1

87421258EPAC

CORE-EPA ENGINE

Return Number

1шт.

2

NS

NOT SERVICED

Exhaust Elbow Group

1шт.

See Fig. 03-049

1шт.

3

NS

NOT SERVICED

Turbo Elbow Group, 3.5 X 45

1шт.

See Fig. 03-013

1шт.

5

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

4

84176286

V-BELT,27.92 mm W x 1930.00 mm L

, Start Year: 01-JUN-09

1шт.

4

87519458

V-BELT

Rib, CDC3289615, Years: -01-JUN-09

1шт.

6

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

7

87626014

FITTING

5/8 HB x M18 Thread

1шт.

8

87626015

FITTING

3/4 HB x M18 Thread

1шт.

9

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

10

NS

NOT SERVICED

Starter Group

1шт.

See Fig. 03-054

1шт.

11

NS

NOT SERVICED

Alternator Group

1шт.

See Fig. 03-055

1шт.

13

NS

NOT SERVICED

Engine Oil Drain, M22

1шт.

See Fig. 03-006

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

15

87619166

HOSE,19.05 mm ID x 290.00 mm, SAE 30R2 TYPE 1 OR 100R6

CCV

1шт.

16

87518813

V-BELT,12.70 mm W

A41

1шт.

18

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

9991588

NUT,M8 x 1.25, Cl 8

2шт.

21

8602005

HEATER,750W, 120V

Block; 750W 120 V

1шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Year: 01-JUN-09

4шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Years: -01-JUN-09

2шт.

25

87579956

BRACKET

ENGINE OIL DIPSTICK

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

27

84149000

BRACKET, SUPPORTING

1шт.

28

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

2шт.

29

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

31

BN305412

O-RING

1шт.
