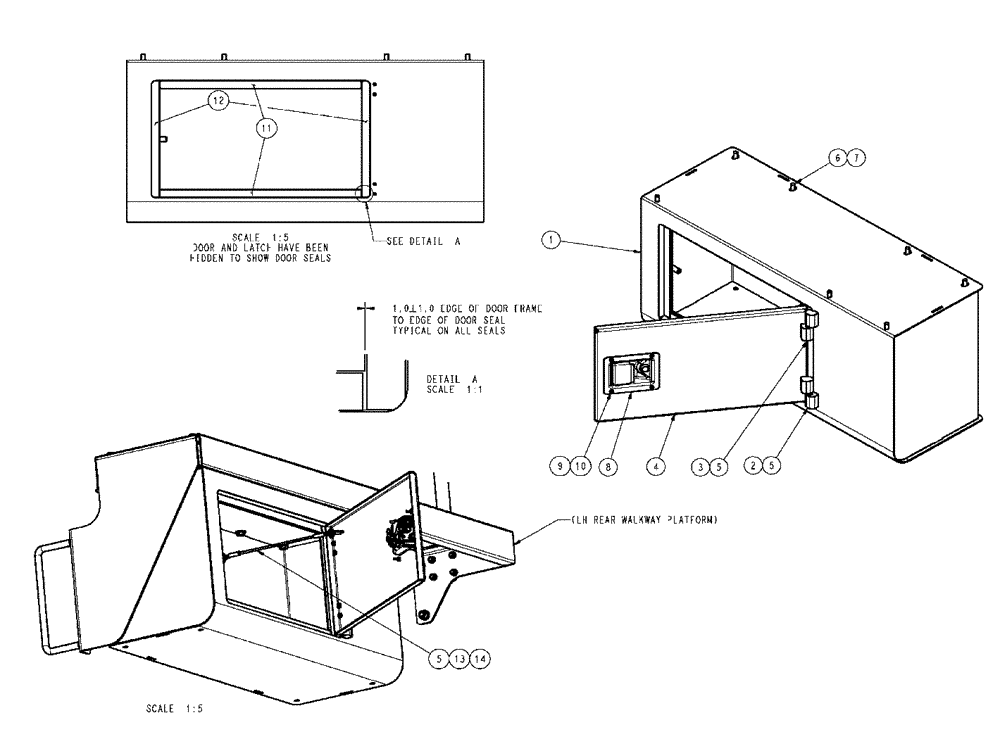

Запчасти Case IH SPX3320 (04-035) - STORAGE BOX GROUP Suspension & Frame

1

87268620

BOX

1шт.

2

BN306286

HINGE

1шт.

3

BN306290

HINGE

NYLON, TYPE A, M6

1шт.

4

87555040

DOOR

Storage Box

1шт.

5

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

Hex Socket, M6 x 16, CL8.8 DOR

10шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

7

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

7шт.

8

BN323944

LATCH

PADDLE HANDLE

1шт.

9

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

11

BN323949

SEALING STRIP

TRIM

2шт.

12

87268931

SEAL

TRIM

2шт.

13

F64526

CABLE

DOOR

1шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.
