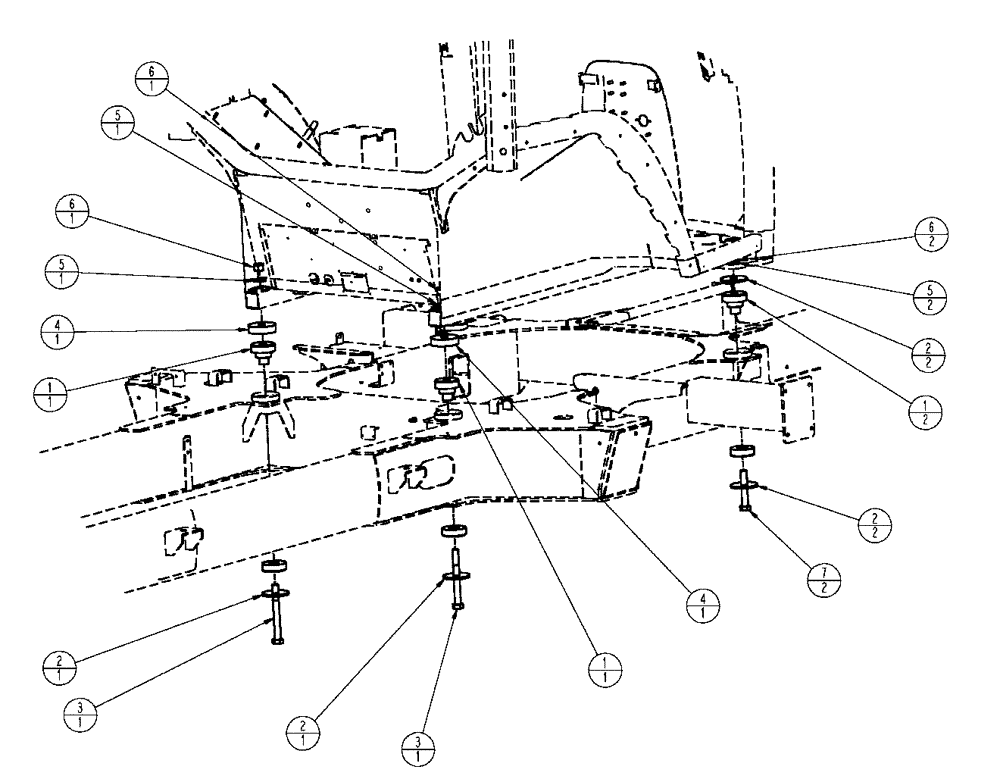

Запчасти Case IH SPX3320 (04-034) - CAB MOUNTING GROUP Suspension & Frame

1

BN302281

ENGINE MOUNT

4шт.

2

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

6шт.

3

87532205

BOLT,Hex, M22 x 200mm, Cl 10.9

M22 X 200 10.9 DOR

2шт.

4

87541873

SPACER

CAB MOUNT

2шт.

5

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4mm, HDN, DOR

4шт.

6

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

4шт.

7

87532211

BOLT,Hex, M22 x 130mm, Cl 10.9

M22 X 130 10.9 DOR

2шт.
